Alpine iLX-F905D – Halo 9 V2 Digital Media System
The Alpine ILX-F905D Is The New Halo 9 But Better! 720P High Res Screen With DAB, Bluetooth, WiFi, Dual USB, Wireless Apple CarPlay & More! read more
DescriptionThe Alpine ILX-F905D Is The New Halo 9 But Better! 720P High Res Screen With DAB, Bluetooth, WiFi, Dual USB, Wireless Apple CarPlay & More! read more
Alpine iLX F905D – Halo 9 V2 Digital Media System
The iLX-F905D Alpine Halo9 is the second generation of Alpine’s world-famous Halo product line, featuring a 9-inch high-resolution WXGA touch-screen and is compatible with virtually any vehicle with 1DIN or 2DIN installation dock. The super-slim display appears to simply hover over your dashboard and can be adjusted in various ways for the best position.
Enjoy wireless Apple CarPlay and Android Auto (wired) compatibility, DAB+ digital radio, USB video playback, Hi-Res Audio playback, Bluetooth hands-free and audio streaming and much more with this amazing Head Unit.
Bring exceptionally good sound quality into your vehicle: the Alpine Halo9 is the world’s first Head Unit featuring a built-in Class-D amplifier and has a wide array of professional sound tuning functions, such as 2-way X-overs, a Parametric EQ, digital time correction and much more.
The 2nd Generation Alpine Halo9 Is Here
The Alpine Halo9 has become one of the world’s most popular Head Units and won many industry awards for its outstanding concept and design. We continued to improve upon this successful product and make it even better. The 2nd generation Alpine Halo9 features a high-res display, Wireless Apple CarPlay, two USB ports, further improved sound quality and tuning options and many more innovations and improvements.
9-inch WXGA HD Display
The large, 9-inch WXGA touch-screen display features a resolution of 1280 x 720p and includes over 2.7 million pixel elements – making icons, menus and visual content extremely crisp and vibrant in your dash. The screen is attached to an adjustable mount connected to a single-DIN chassis that’s designed to fit in most 1DIN or 2DIN dash openings.
Wireless Apple CarPlay

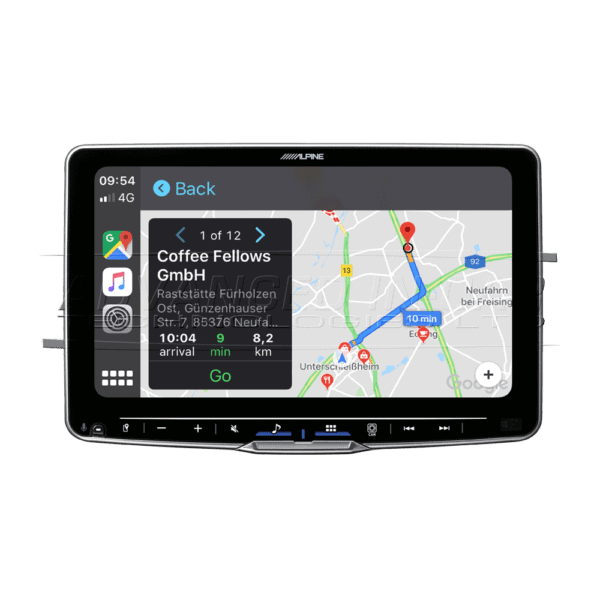

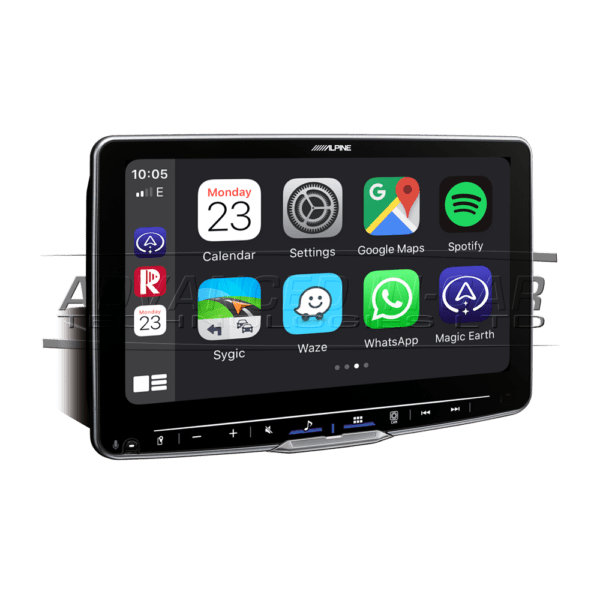

The iLX-F905D “Works with Apple CarPlay” wirelessly and lets iPhone users make and receive calls, access and write text messages, play music, and get direction in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touchscreen or the mic button to activate Siri voice control. Due to the WiFi connection, you can keep your iPhone in your pocket and do not need to plug it in all the time (except for charging).
2x USB Ports
While the Alpine Halo9 is mech-less (no built-in CD/DVD drive), you still have plenty of entertainment options. 2 USB ports located on the back of the unit allow you for example to connect one mobile device for charging, while the other USB port is used to plug in a USB stick or hard drive to access audio and video files.

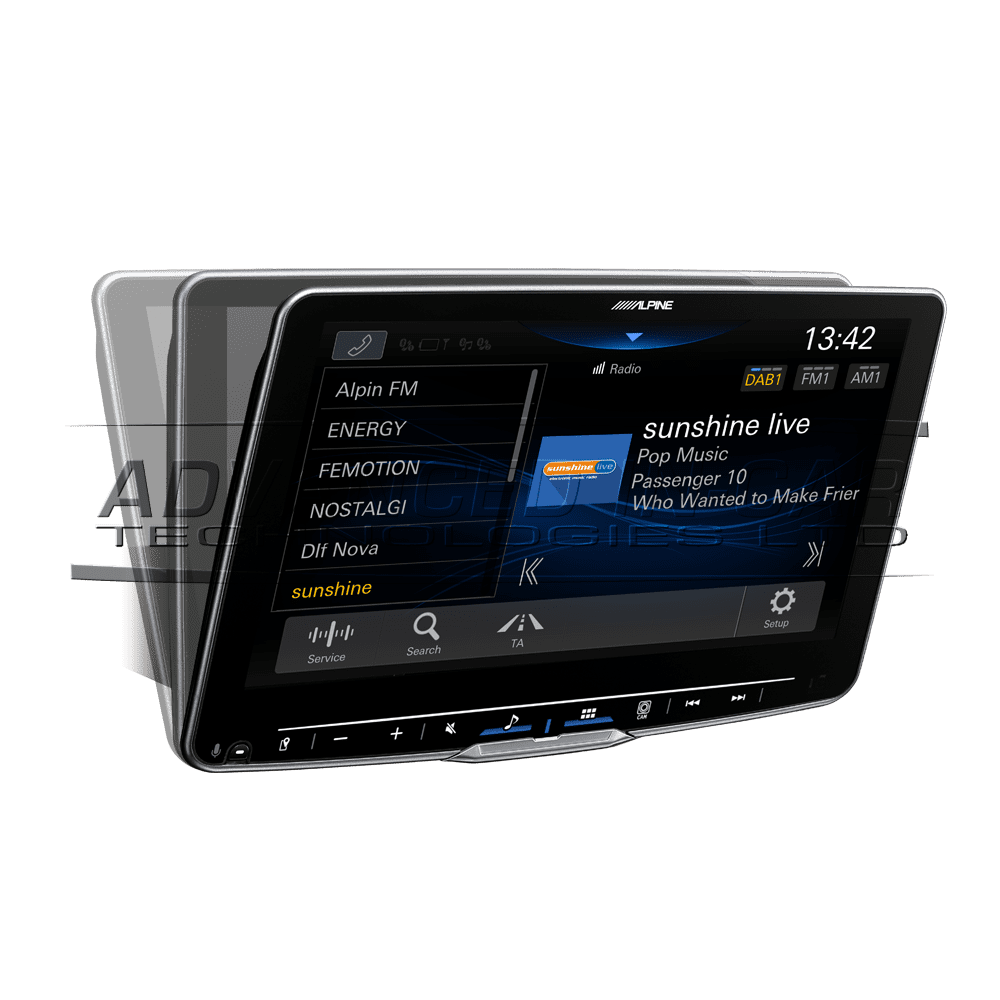

With five vertical adjustments, free angle selection, and two separate depths, you can position the floating display in the most optimal position, so you still have access to your dash controls and air vents. The user now can freely adjust the display angle at any time, to achieve the best visibility and avoid sunlight glare.
World’s First Head Unit With Built-in Class-D Amplifier
The iLX-F905D is the world’s first aftermarket Head Unit featuring a built-in 4x 50 Watts Class-D amplifier – allowing excellent, high-end sound reproduction with highly reduced noise or phase shift. The key benefit of Class-D amplification technology is its high efficiency of about 90%, compared to 50 – 70% of Class AB amplifiers. New high-speed fans with internal heat sinks keep your Alpine Halo9 cool – and the music playing.
Enjoy Excellent Sound Quality

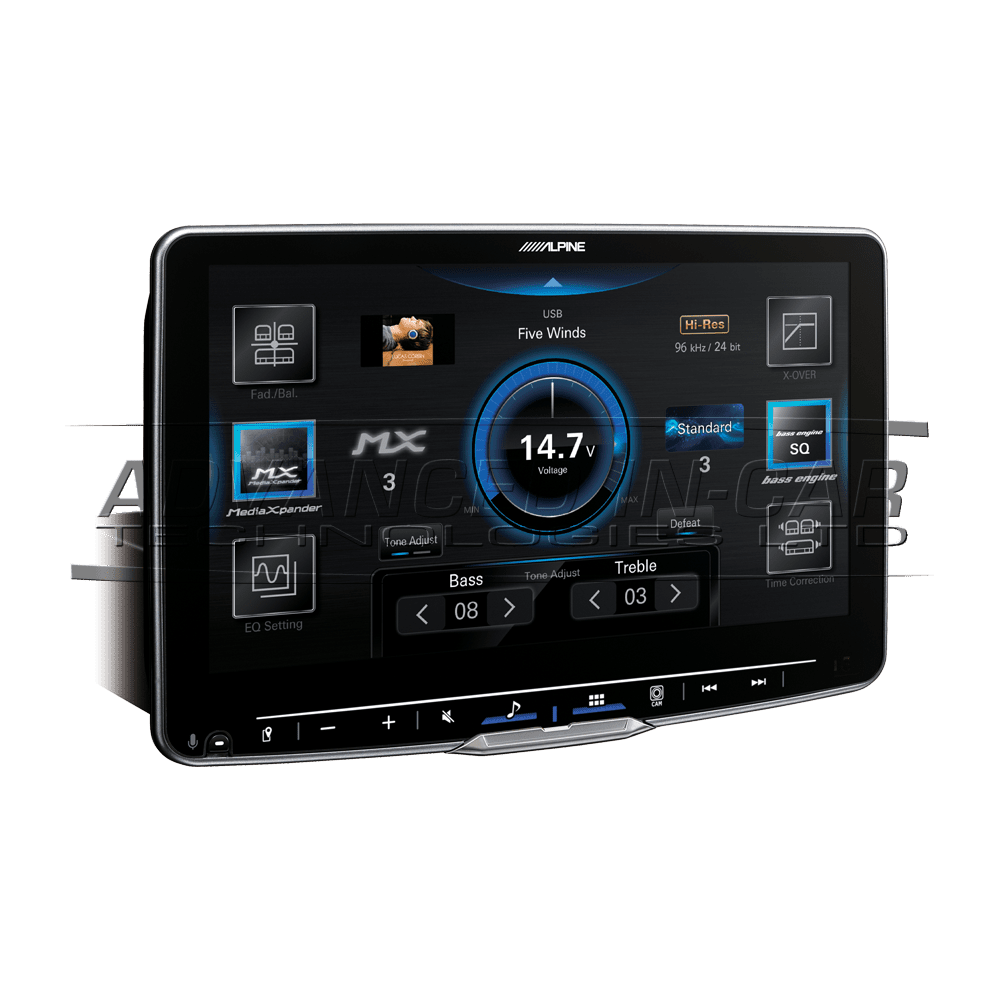

Featuring a 56-band Parametric EQ in the advanced mode, a 2-way digital X-over, 6-channel digital time correction and several Bass Engine SQ and MediaXpander sound tuning options, you have excellent tools at your disposal to tune your Alpine Halo9 and the attached amp/speaker system to perfection. But we didn’t stop there: The Alpine Halo9 is Hi-Res Audio certified and can decode and playback Hi-Res Audio files up to 96kHz / 1.536 kbps from USB sources in uncompressed supported formats such as FLAC, WAV and APE.
Wide Entertainment Options

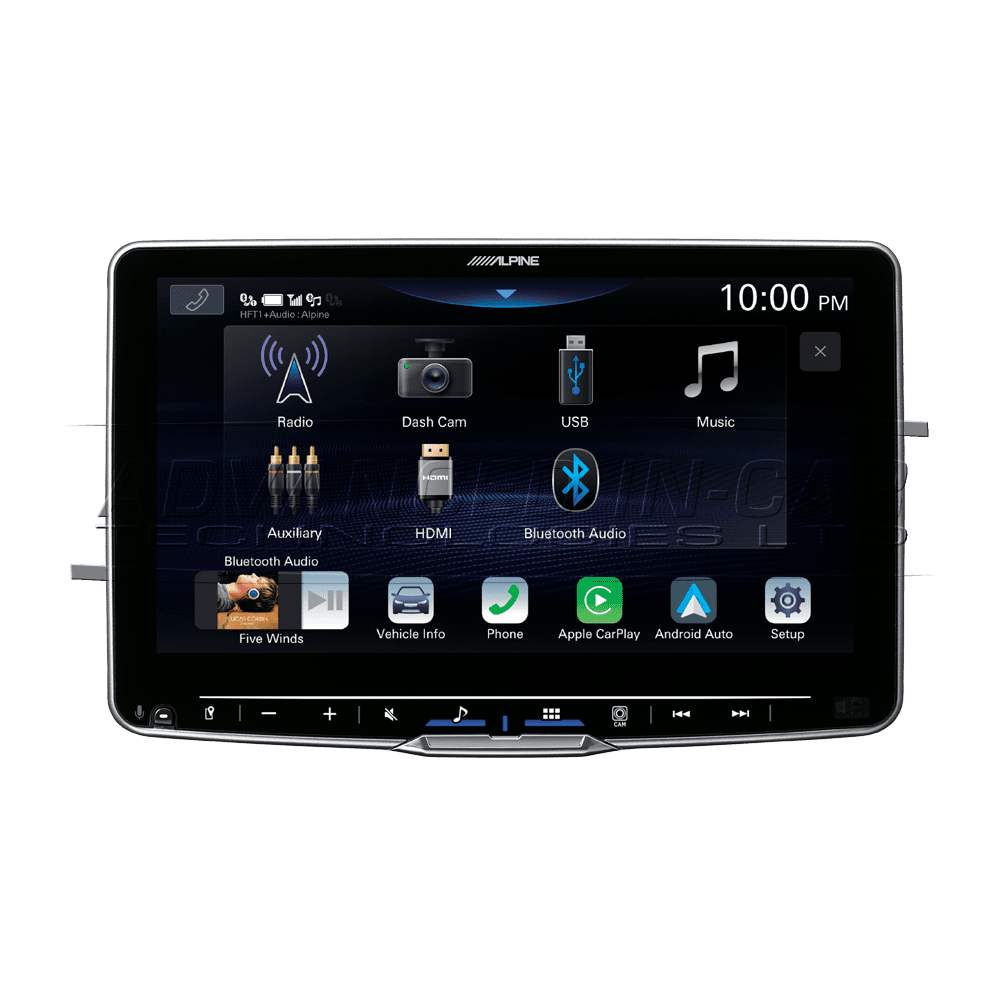

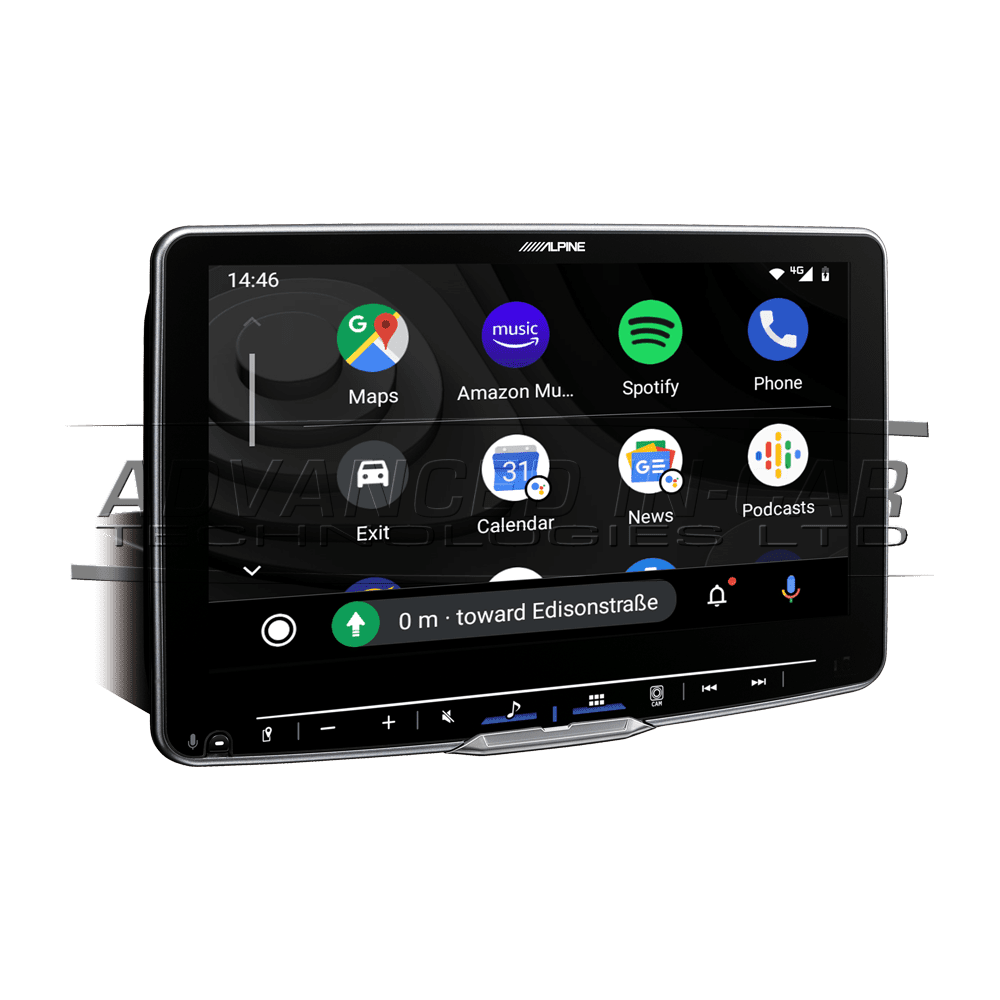

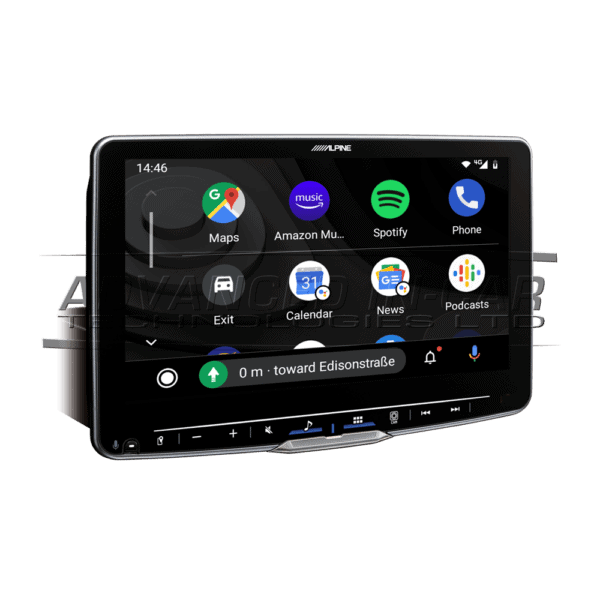

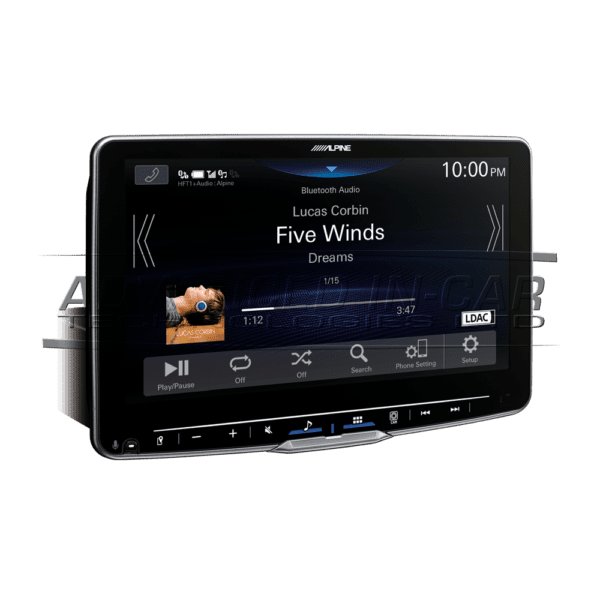

The all-new DAB/ radio tuner allows DAB – FM switching and lets you enjoy seamless radio reception without interruptions. Next to the increased USB video playback formats (MP4, MOV, FLV, MKV), the Alpine Halo9 features many additional entertainment options: the built-in Bluetooth module allows audio streaming from your phone and the HDMI input enables the connection of an external video playback device. You can of course use Android Auto with any compatible smartphone running Android (wired connection).
Vehicle Data-bus Connection
If your car is equipped with parking sensors, you can continue to use these convenient functions with your iLX-F905D. Alpine offers many vehicle data-bus interfaces to connect your Alpine Halo9 to your vehicle’s data-bus system. This enables compatibility with your vehicle’s steering wheel control buttons, display of air conditioning settings as well parking sensor display.
A rearview camera is a great way to make reversing safer. The camera image automatically comes on when you shift into reverse and distance guides that can be adjusted to match your car size will appear on the screen to help you safely park your car. Alpine offers a wide variety of front and rear-facing cameras, including multi-view cameras with selectable viewing angles. You can even view the camera screen and parking sensor screen simultaneously if your car supports it.
For the VW Transporter T5.1 & T6, we have created our own Custom Fitting Kits that give you every extra you may need when installing it into your vehicle. This is a Premium Fitting Kit rather than just a generic “Cheap” collection of items. As we have installed so many of these systems we have pulled together some of the best equipment available to give you that truly finished look. We’ve also added our popular Aftermarket Wedge Camera. These can be added to your basket through the Tick Boxes above. Once ordered, we’ll be in touch to discuss your specific fitting kit.
VW Transporter T5.1 Kit:
- Double DIN fascia
- Aerial Adapter
- Brackets & Single Pocket
- Specific CANBUS Wiring Interface with Speed Pulse and Reverse Signal
- Glass Mounted DAB Antenna with 12v Power Fly Lead
There is now a Second T5.1 Fitting Kit that will come with the T6 UART Interface. This is so that if your vehicle currently has “Optical Parking Sensors” you will retain this function.
VW Transporter T6 Kit
- Double DIN Fascia
- Aerial Adapter
- Brackets & Single Pocket
- Specific CANBUS (UART*) Wiring Interface with Speed Pulse and Reverse Signal
- Factory DAB Retention
- Factory GPS Extension (From Drivers Door) – * (CURRENTLY NOT INCLUDED) – Please note that Alpine have changed the type of connector used on their GPS antenna included so you will need to modify the extension for it to fit. Alternatively – you can simply install the GPS antenna that comes in the box *
- Factory (SINGLE USB) Retention Kit (If you have USB & Aux you won’t be able to Retain this with the Alpine)
*The UART Interface allows a deeper level of integration displaying Factory Parking Sensors and Climate Control (Where compatible)
Aftermarket Wedge Camera
- Gloss Black NTSC Universal Camera with single drill hole installation for every vehicle
- Features: Guidelines/Mirror Image/Up-Down Image
- 5 Metre Extension
- Yellow Phono Plug ready
- Alpine Camera Adapter included
- Main Listing – https://www.advanced-incar.co.uk/products/reversing-cameras/wedge-reversing-camera/
How To: Install An Alpine Halo Media System Into VW T6 Transporter!
How To: Retain all the Vehicle Settings & Menus When Upgrading Your Factory Radio in a VW T6.1!
8 Mega Upgrades on this VW T6 Caravelle 2018!! Amazing In-Car Tech Transformation – Full Walkthrough
How to: Get apps like Netflix, YouTube & Prime In Your Car – Stream With The New Age Of Alpine
- 3 kg
