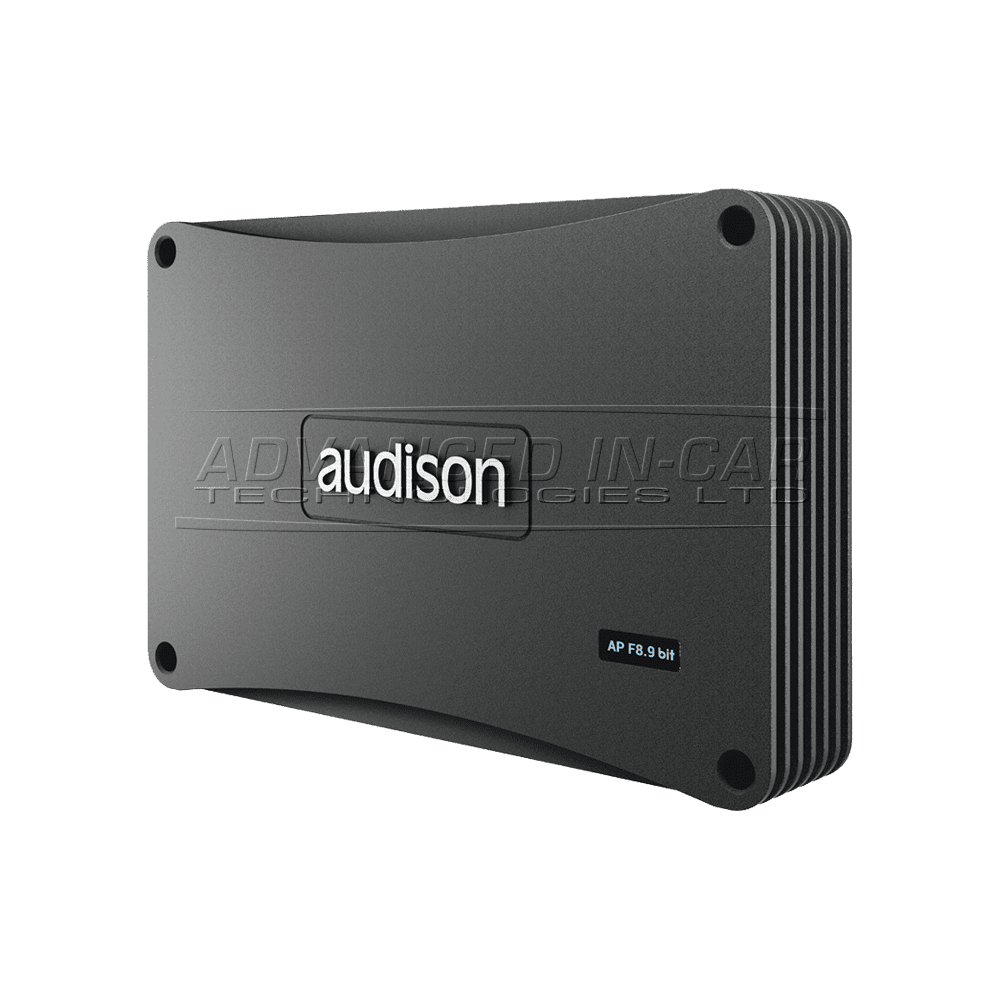

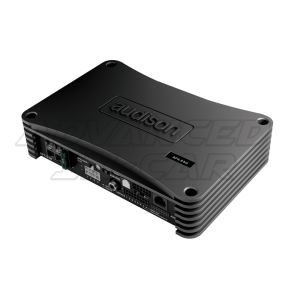

Audison Prima AP F8.9 bit – 8 Channel DSP Amplifier

£999.00

  • Audison_Prima_APF8.9_2
  • Audison_Prima_APF8.9_3
  • Audison_Prima_APF8.9_2
  • Audison_Prima_APF8.9_3

Description

In Stock

Audison Prima Forza AP F8.9 bit – 8 Channel with 9 Channel DSP Amplifier Audison Prima amps incorporating bit processor... read more

SKU:
Au_18511
Category:
view all details

Price

£999.00

Quantity

- +

Total

£ 999

Description

Audison Prima Forza AP F8.9 bit – 8 Channel with 9 Channel DSP Amplifier

Audison Prima amps incorporating bit processor have been around for a while now. Conceived as the ultimate integration product, they have by necessity featured relatively low power, to optimise plug and play opportunities without the need to provide a high current supply from the vehicle battery. This new “F” version more than doubles the power rating delivering a very creditable 85 Watts per channel. The amplifier can be configured to run in bridged mode and will also operate quite happily when driving a 2 ohm load offering potential power output of up to 260 watts for a pair of bridged channels.

The new AP F8.9 bit is the ideal for the most demanding integration projects, where high power is required along with the flexibility of the nine-channel DSP. The word “Forza”, meaning “Power” in Italian, well describes the 8 x 85 W RMS and 4 x 260 in bridge mode (RMS @ 4Ω), with an optimal power to size ratio. The integrated processor is equipped with a dedicated software and 7 pre-configured presets for a Plug & Sound experience. Thanks to the built-in Audison USS technology (Universal Speakers Simulator), AP F8.9 bit can also be correctly connected to head-units with “speaker load detection” function that monitors the presence of a low-impedance load to enable the audio outputs.

Fully loaded with the renowned bit DSP engine, this is an amplifier for all seasons!

Top Features

Full DA – Full Digital Audio
Pure digital signal transfer with a resolution up to 24 bit / 48 kHz.
BIT DRIVE
Auto tuning by Audison bit Tune and communication with bit Drive portal.
DE-EQ – De Equalization
De-equalization function to “flatten” any equalization applied by default by OEM sources.
DCC – Direct Current Cockpit
To speed-up installation time preserving safety and reliability, the Audison R&D team equipped the AP bit amplifiers with DCC, an innovative management circuit which monitors the power supply current consumption in real-time. This solution provides the ability to connect the amplifier to the cockpit directly without reaching the battery.
iDatalink Maestro AR compatibility
When AP bit amplifiers are installed into a compatible vehicle using the iDatalink Maestro AR (sold separately), the user can enjoy a perfect integration with factory installed navigation, advanced safety systems, voice-controlled hands-free and infotainment. (Only for North America)

Power Output:

Load Imp. 8 Channels 4 Channels (bridge)
4 Ohm   85 W x 8 260 W x 4
2 Ohm 130 W x 8
