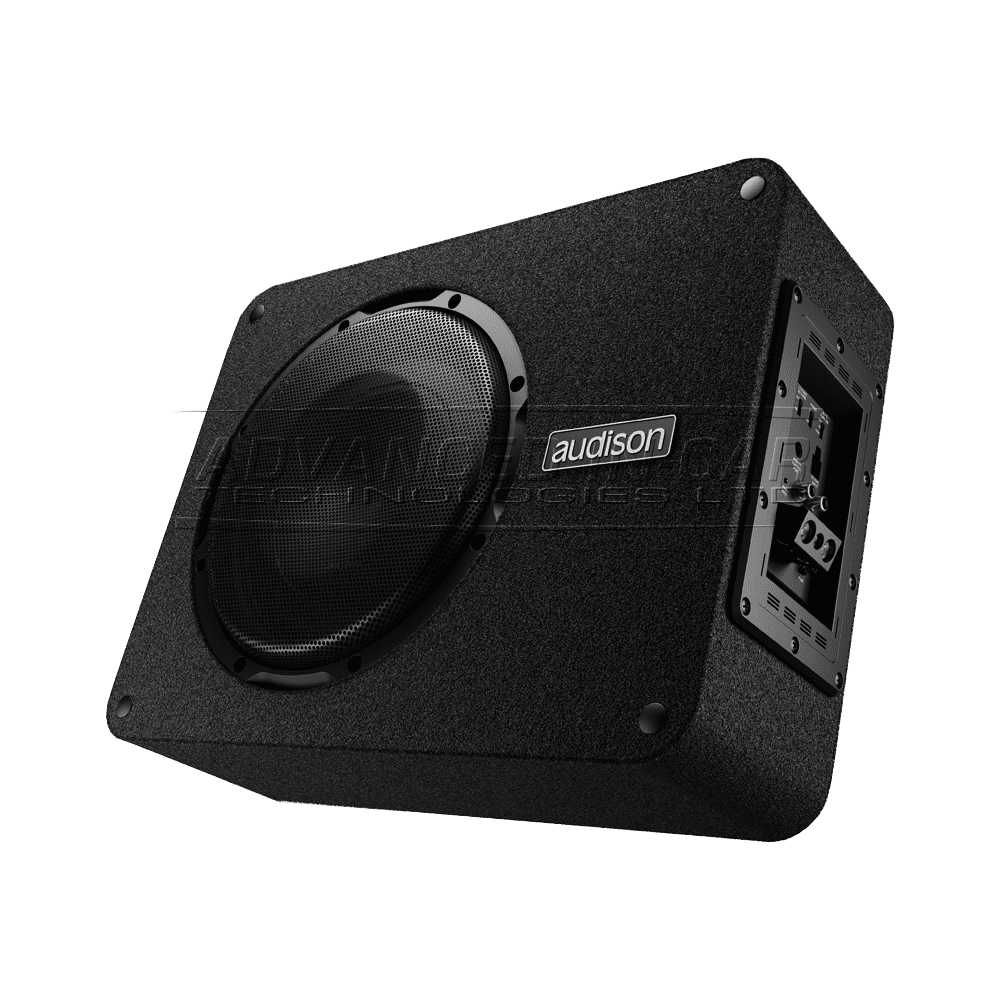

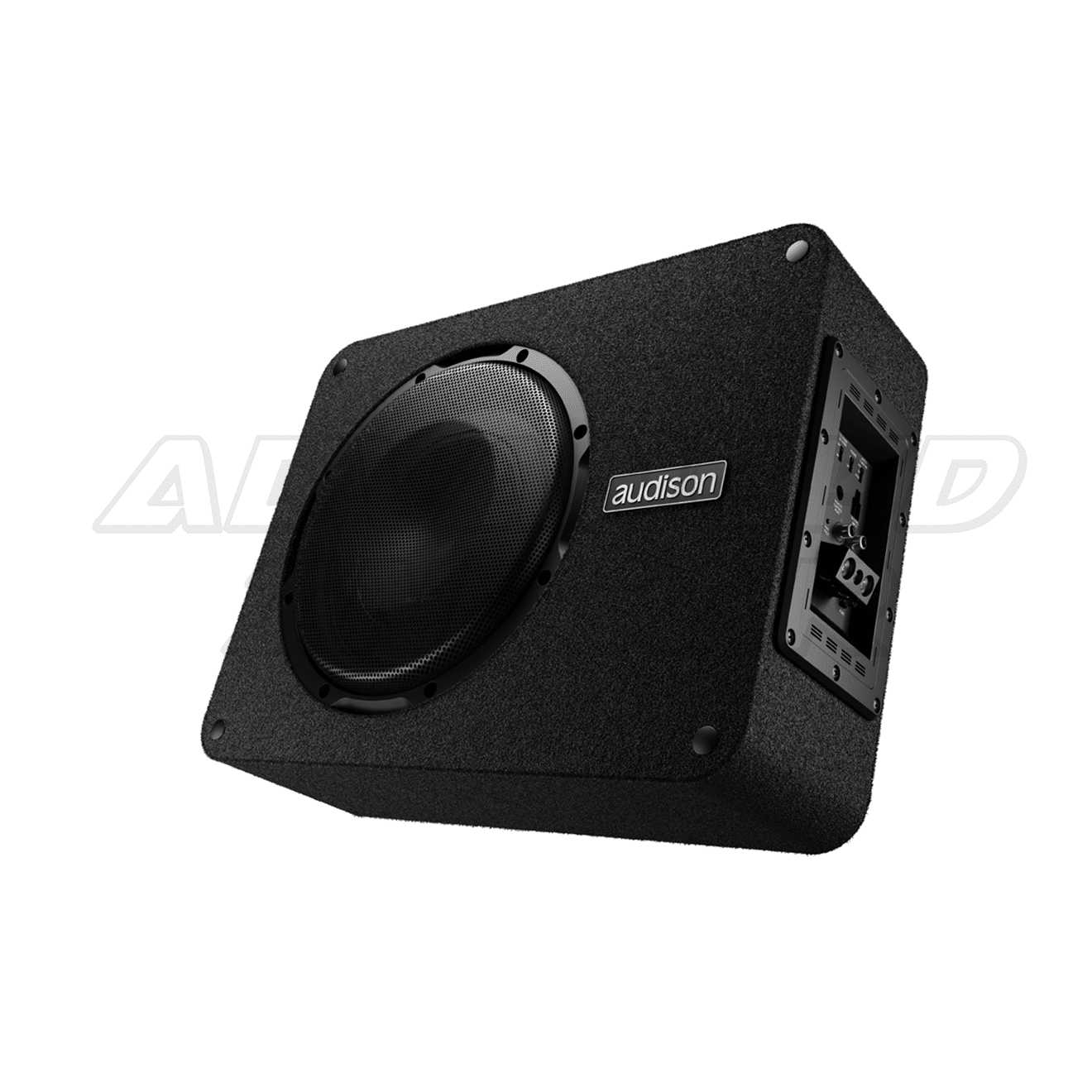

Audison Prima APBX 10 AS2 – Active Sub Box
The Prima APBX 10 AS2 active subwoofer, with 10-inch driver,features a dedicated high performance amplification module which enhances all the passive box technologies, such as the 2S² (2 Sides / 2 Sounds) design, the Plug & Play terminal block and ultra-compact size.

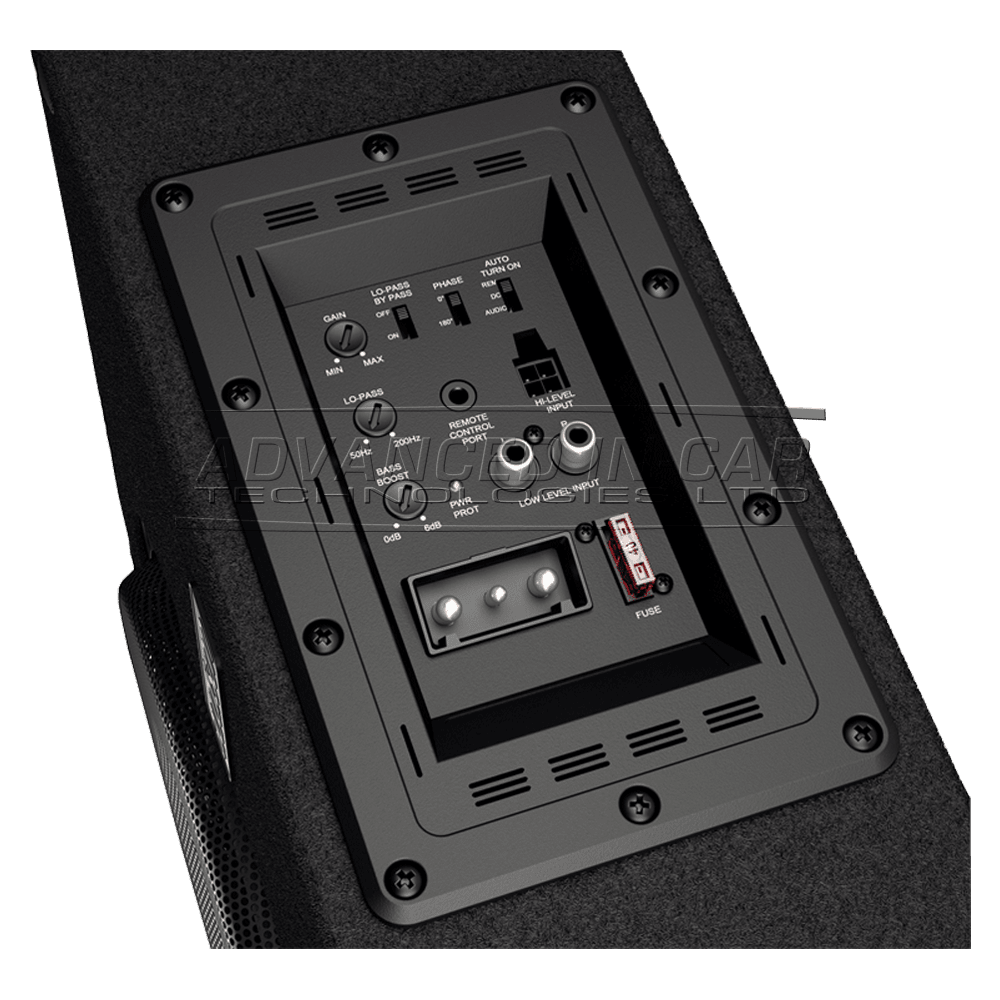

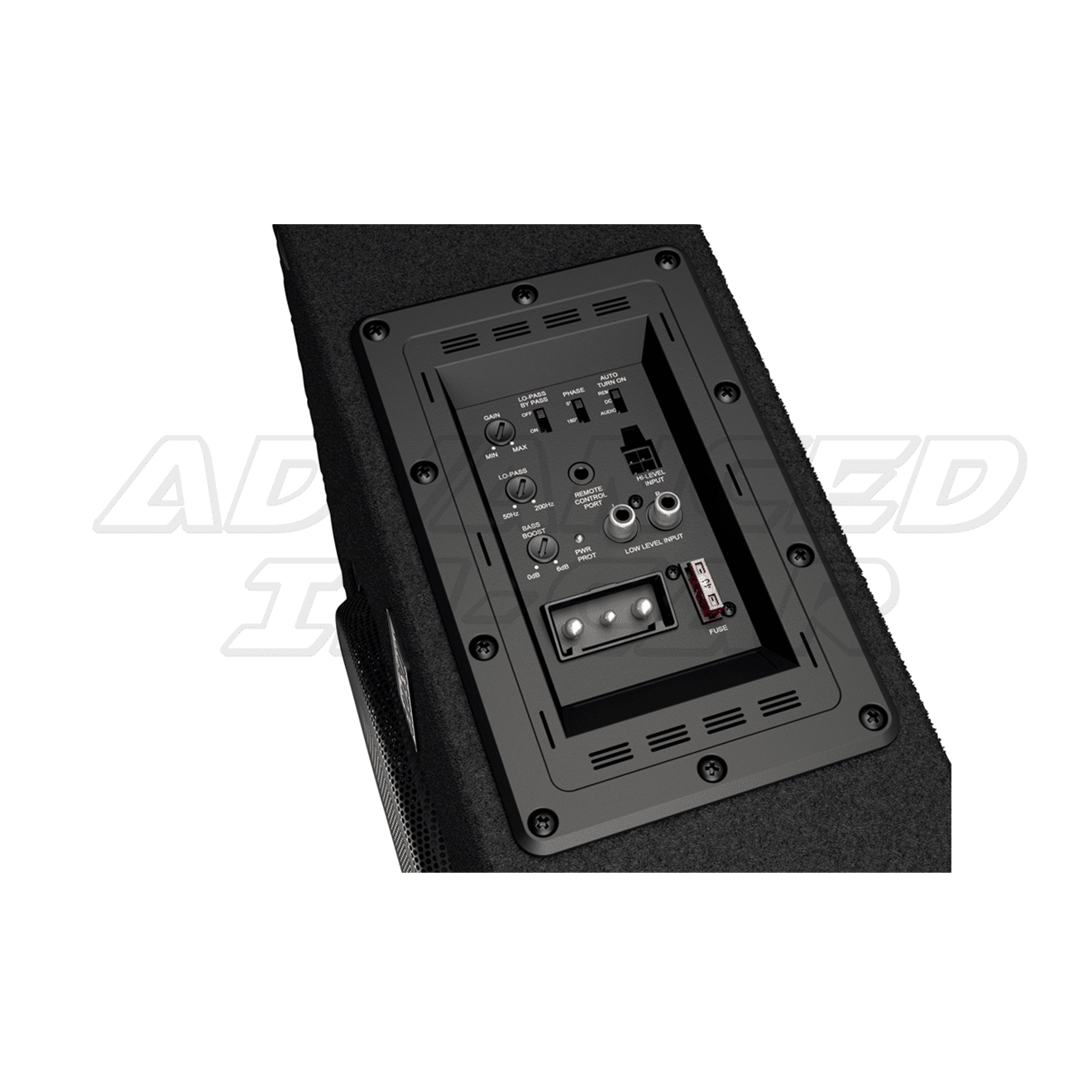

At the forefront of subwoofer technology, Audison take lows to new heights with this active subwoofer. Capitalising on a class D amplifier’s ability to drive extremely low impedance loads, the woofer itself utilises two low impedance voice coils offering an overall nominal impedance of 0.16 Ohms. This means the 400 Watt onboard amplifier can work with extreme efficiency offering mind-blowing bass for such a compact sub/amp combination. With both high and low-level signal inputs, the amplifier offers a built-in Butterworth lo-pass filter (12dB/octave) that can be bypassed when fed via a bit DSP. The APBX 10 AS is equipped with a quick release smart plug for easy removal if extra space is required!
Specifications:
Comp | ACTIVE SUB BOX |
Subwoofer size mm (in.) | 250 (10) |
Subwoofer Voice coil Ø mm (in.) | 60 (2.36) |
Output power (RMS) | 400 W Continuous Power 800 W Peak Power |
Impedance Ω | 0,16 |
Sub box size mm (in.) | 460 (18.11) x 158 (6.22) x 338 (13.31) |
Magnet | High density flux ferrite |
Cone | Water-repellent pressed paper |
Weight of one component kg (lb) | 9,4 (29.72) |
