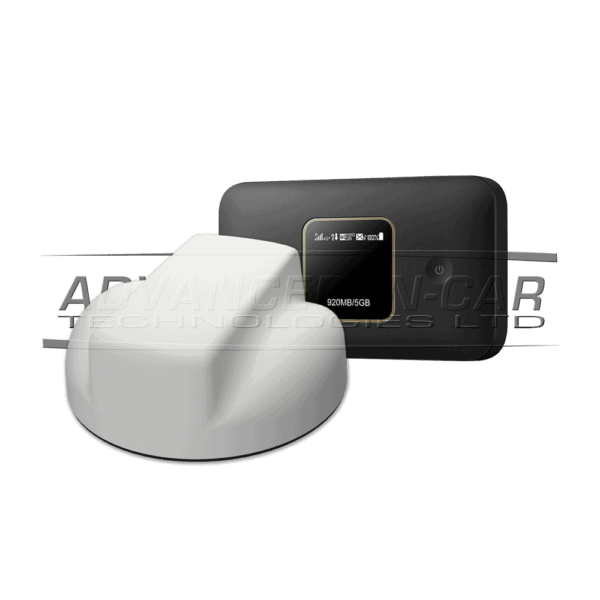

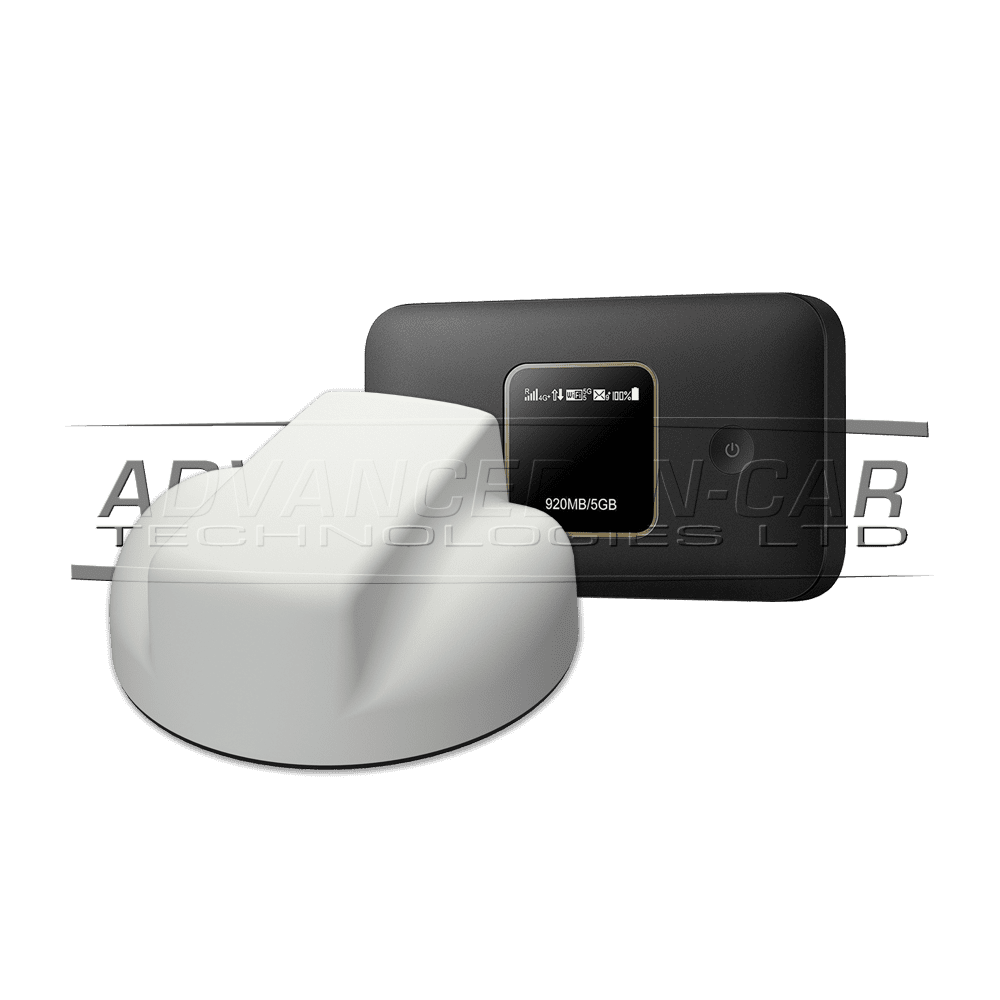

Motorhome 4G WiFi System – Smart Antenna Compact

Staying Connected nowadays is a must! This 4G Wifi System features a Huawei Router and a roof mounted Antenna and is perfect whilst on the move. Once installed, this will give you a significant improvement over the performance of your regular mobile phone data connection.

If you’re looking to stream TV via the internet, the 4G Smart Compact is the ideal solution to ensure you have the reliability and performance necessary to connect a Fire Stick or other streaming device.

At just 62mm high (2.4”) this makes it the perfect solution for your Motor Home or Camper Van. The underside consists of a non-permeable 3M adhesive foam pad and an adjustable threaded internal brace, through which the cables travel into the cabin, for a totally weatherproof installation. The antenna maintains a high level of performance even when mounted on a non-metallic surface such as a coach built motorhome or caravan due to its unique ground plane independent design.

This system also allows for Data whilst on the move without your vehicle, simply disconnect the Huawei Router and take it with you thanks to a built-in battery.

Primarily designed for the UK and EU, the Huawei Router is Unlocked allowing you to use your own Data Sim Card or we can provide a Specific “Discounted” Package based on how you want to use your system. Please see the various Sim Card Data Packages listed in the pictures.

YouTube Video

Installed into a 2020 Elddis Majestic Motorhome

Installation Options

  1. Supply Only – You will receive a FULL Kit with Instructions
  2. Installation at AICT – You will need to bring the vehicle to see us here in Poole, Dorset
  3. Nationwide Installation – This is dependent on location and if we have a suitable engineer or workshop near to you. Some vehicles will be a workshop visit only

Top Features:

  • ‘Always On’ Secure Internet Connection
  • Perfect for streaming TV and use in remote or rural locations
  • Factory Unlocked & 2 Year Warranty
  • 5x the performance of a mobile phone
  • WiFi for up to 10 devices

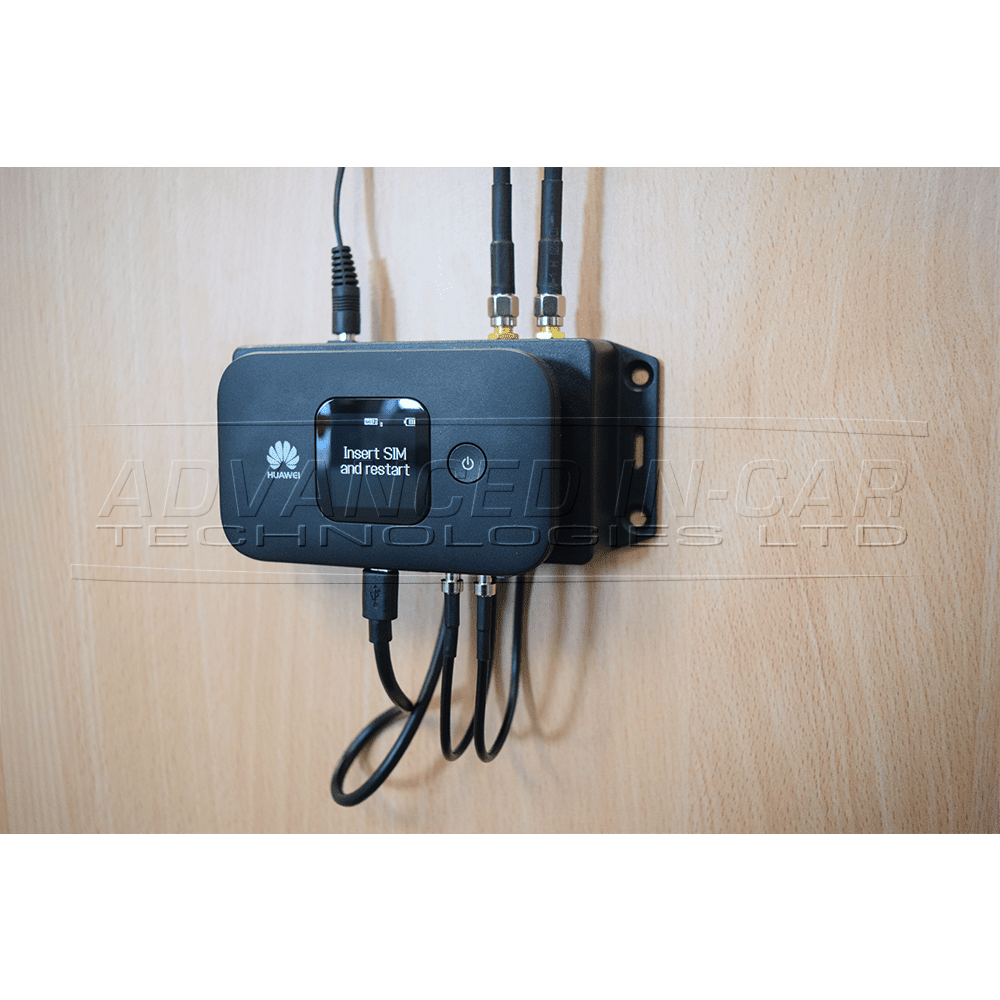

  • Wall Mounting docking station for the MiFi
  • Remove & use portably
  • Use stationary or in motion
  • Advanced functionality available via an easy to use app

Whats Included:

  • Fully Certified 3G/4G LTE Roof Antenna
  • Motorhome specific installation kit
  • 30cm Antenna Cables
  • 2x 1m Antenna Extension cables*
  • E5577 MiFi Device

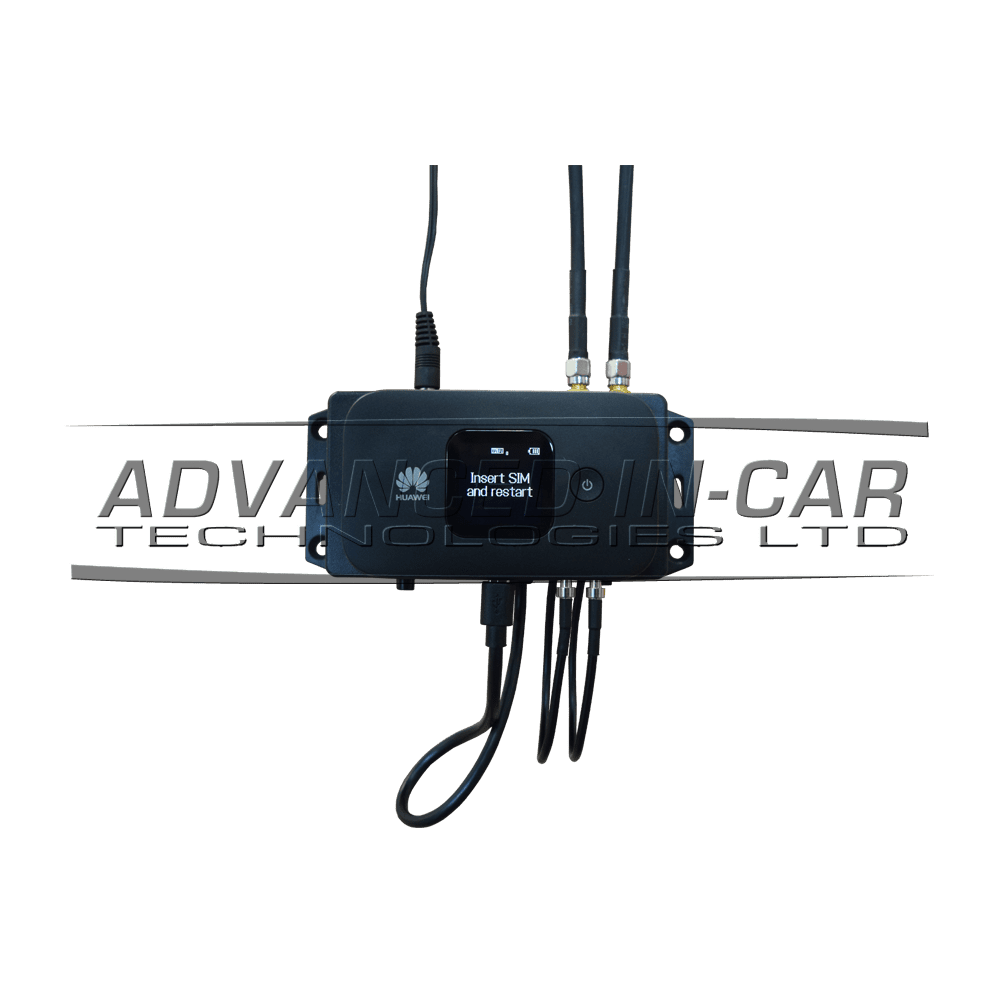

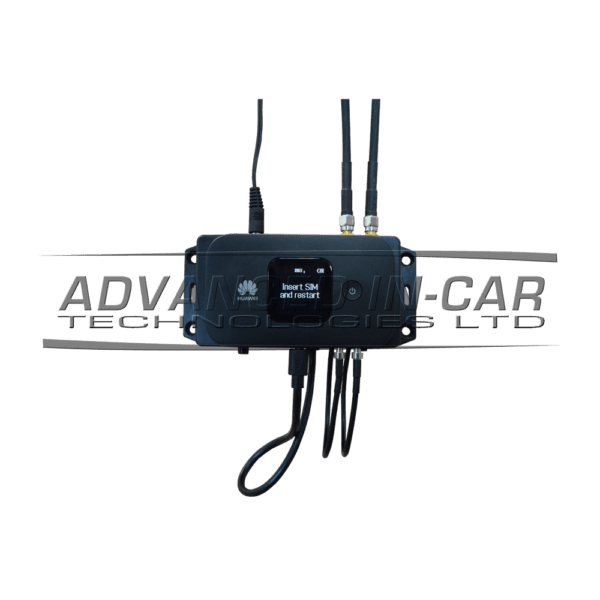

  • Quick Mount Docking Station
  • Full Operating and Fitting Instructions
  • Three ‘Starter’ SIM Pack

SMART Antenna Technical Specifications

  • MIMO antenna configuration
  • Works with 3G & 4G Devices
  • Frequencies 698-960 / 1700-2700
  • Omni-directional radiation
  • Operational Bands:TE / Cellular
  • Height 2.4” (62mm)
  • Diameter 6.7” (170mm)
  • Max Roof Thickness 70mm (70mm Thread included)
  • Max panel thickness / ridge height (mm) 10 (0.4”)
  • Required mounting hole size (mm) 25 (1.0”)
  • 698-960MHz – 2.3dBi
  • 1700-2700MHz – 5dBi
  • SMA Cable length – 1m + 30cm Pigtail
  • Does not require a metallic ground plate
  • Available in Black or White

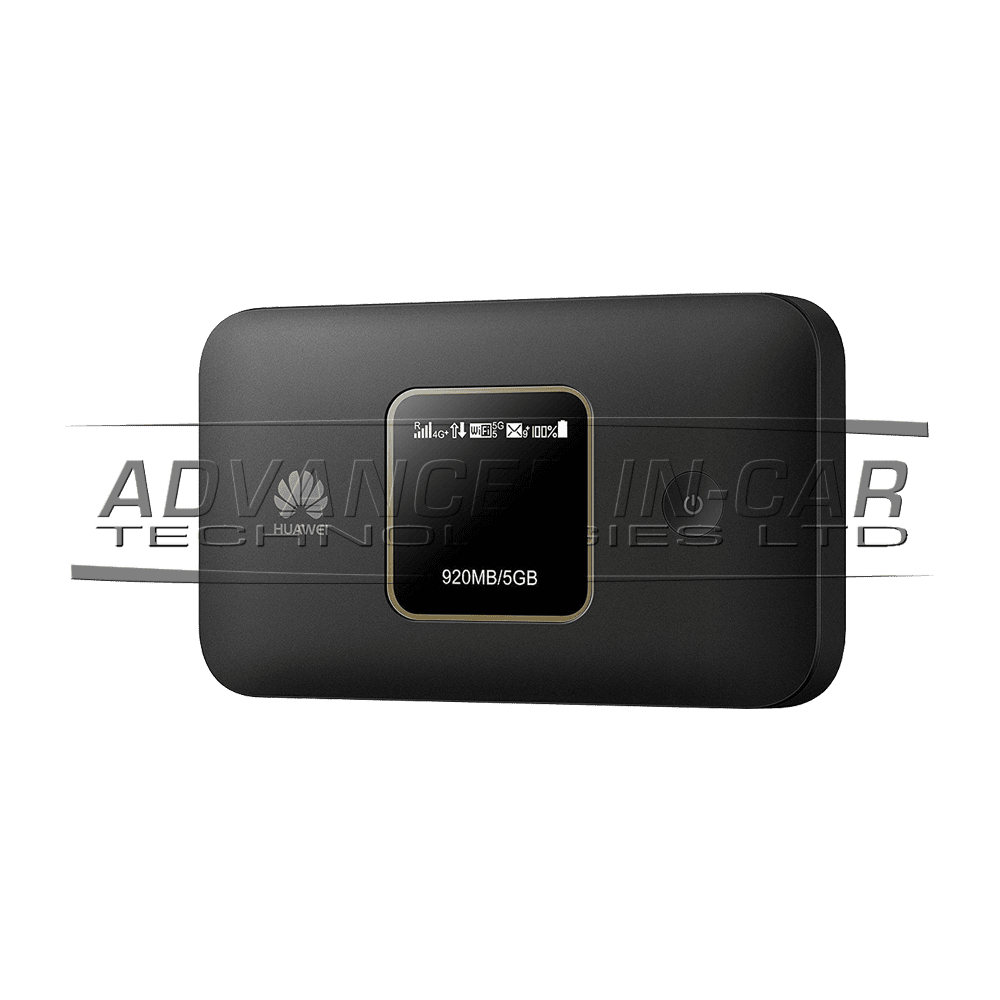

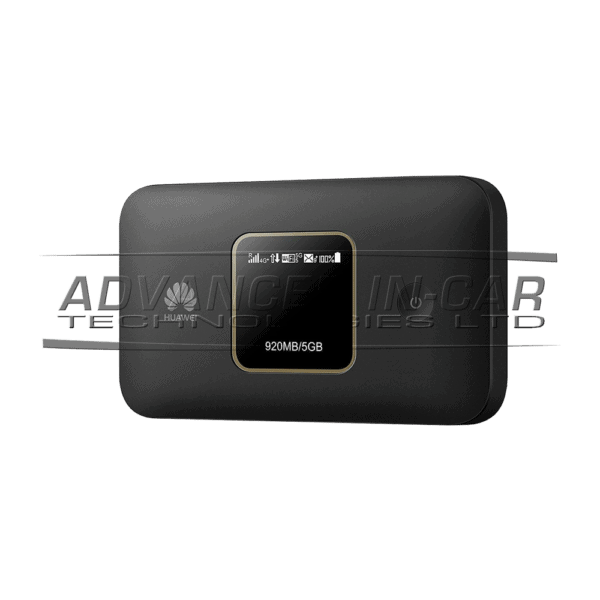

4G Huawei MiFi Specifications:

  • Fully factory unlocked to all mobile networks
  • Fast Boot
  • Width 96.8mm, Height 58mm, Depth 13.5mm
  • Weight 82g (including the battery)
  • Communication System: LTE FDD/LTE TDD/UMTS/HSUPA/HSPA+GSM/GPRS/EDGESpeed: LTE FDD 150Mbps/LTE TDD 112Mbps
  • Display: 1.45” TFT LCD
  • Battery: 1500mAh,Maximum working time: 8 hours
  • Maximum standby time: 300 hours while Wi-Fi is off
  • 2 External (TS9) MIMO antenna connectors for optional antennas
  • Wi-Fi Connection Number: Up to 10 simultaneous users/devices
  • Free optimised App

Accessories

Roof Extension Thread

Roof Thread Extension Kits suitable for all roof thicknesses.

It’s worth noting that all of our 4G Smart and 5G Ready Products come with a 70mm roof thread extension as standard which accommodates most motorhome, caravan and panel van conversions.

If you are converting your own panel van, you may wish to opt for the 40mm thread extension as this is more suited to a sheet metal installation

American RV’s and some coachbuilt motorhomes have thicker insulation and therefore generally require a longer thread extension to accommodate this.

EDPM Foam Pad Adapter for Ridged Roof or Uneven Surfaces

Thick foam pad adapter for ridged or uneven mounting surfaces.

Stand-Off Roof Mount

Stand-off Roof Mount for surface mounting, compatible with:

We have developed a high quality lightweight aluminum powder coated stand off bracket to allow a surface mount installation, the footprint of which is not much larger than the antenna itself.

The bracket has been specially designed to accommodate the roof of a Fiat Ducato / Peugeot Boxer / Citroen Relay roof and give you the choice of either mounting the bracket on top of or between the ridges.

Antenna SMA Cable Extensions

High performance low loss SMA Cable extensions compatible with:

Please Note:

  • Installation requires an 25mm hole to be drilled into your roof
  • If you would like us to install this product for you, it must be done at our workshop in Poole, Dorset. Costs will be discussed based on the vehicle when you get in touch.
