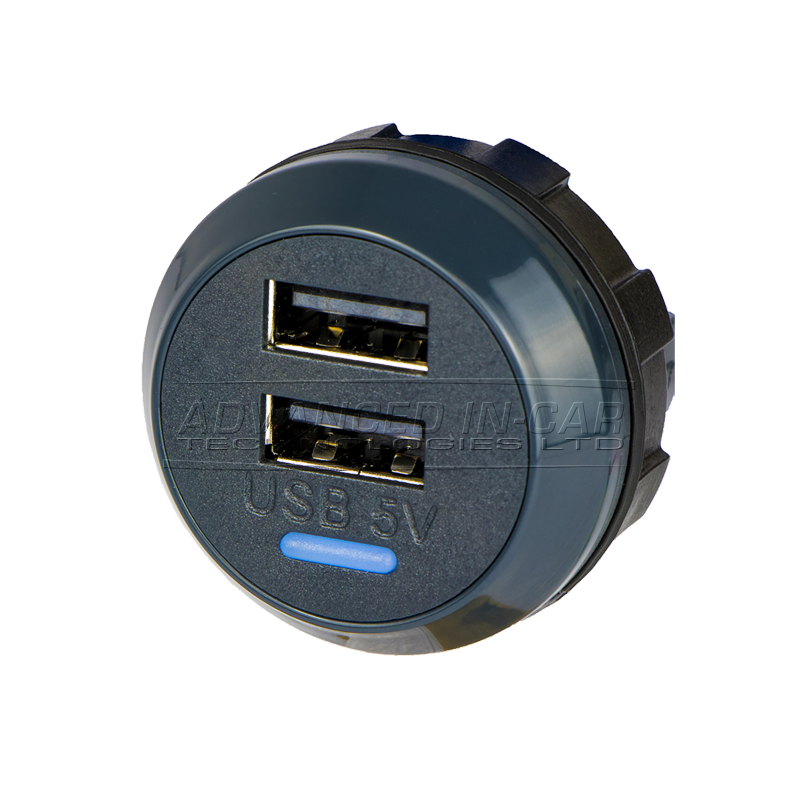

  • USB_Dual_Rear_Grey
  • USB_Dual_Rear_Black

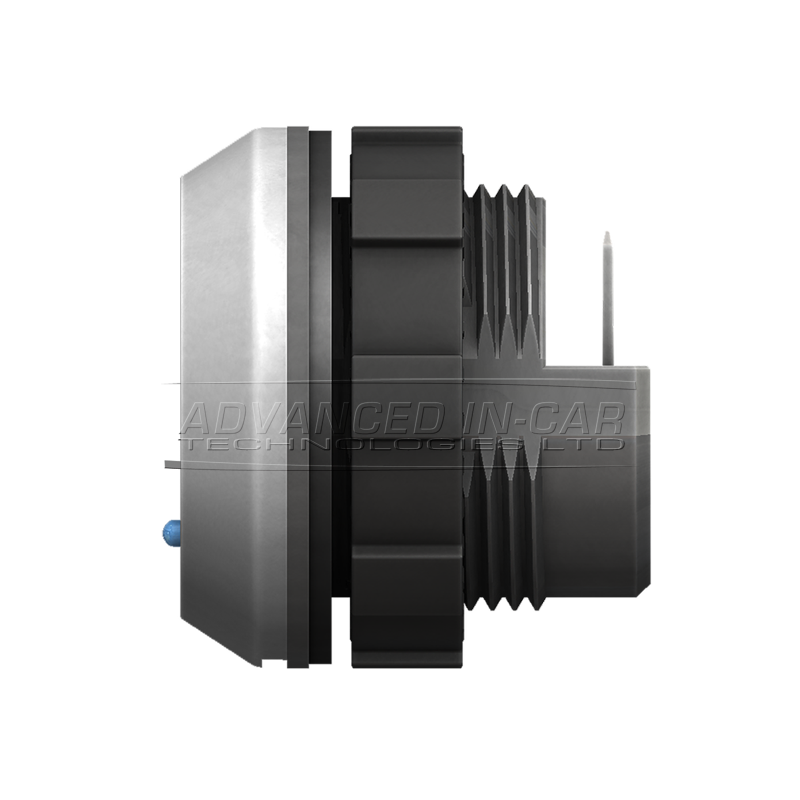

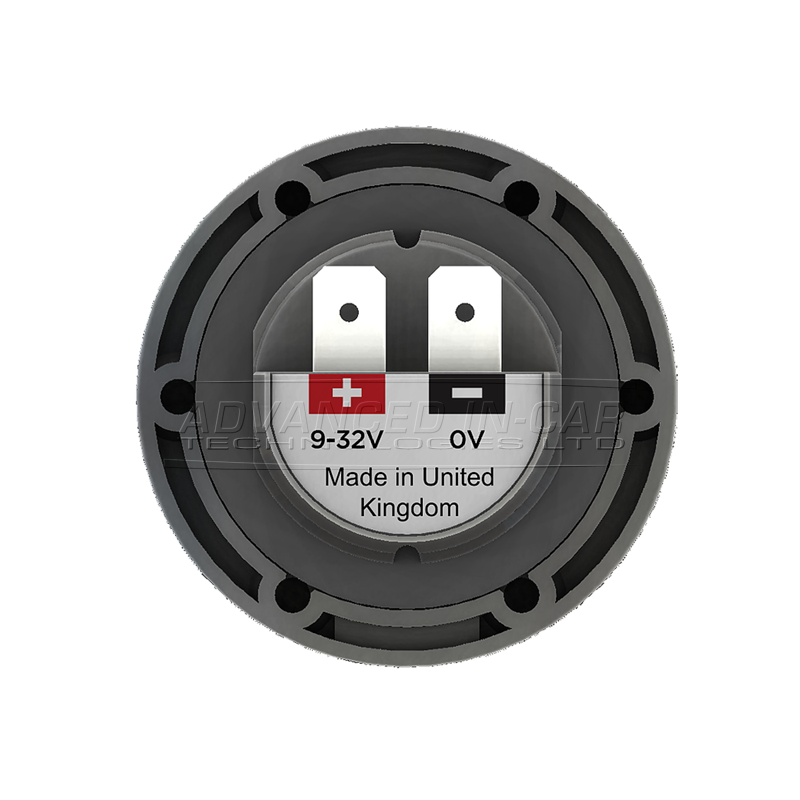

  • USB_Dual_Rear_Behind

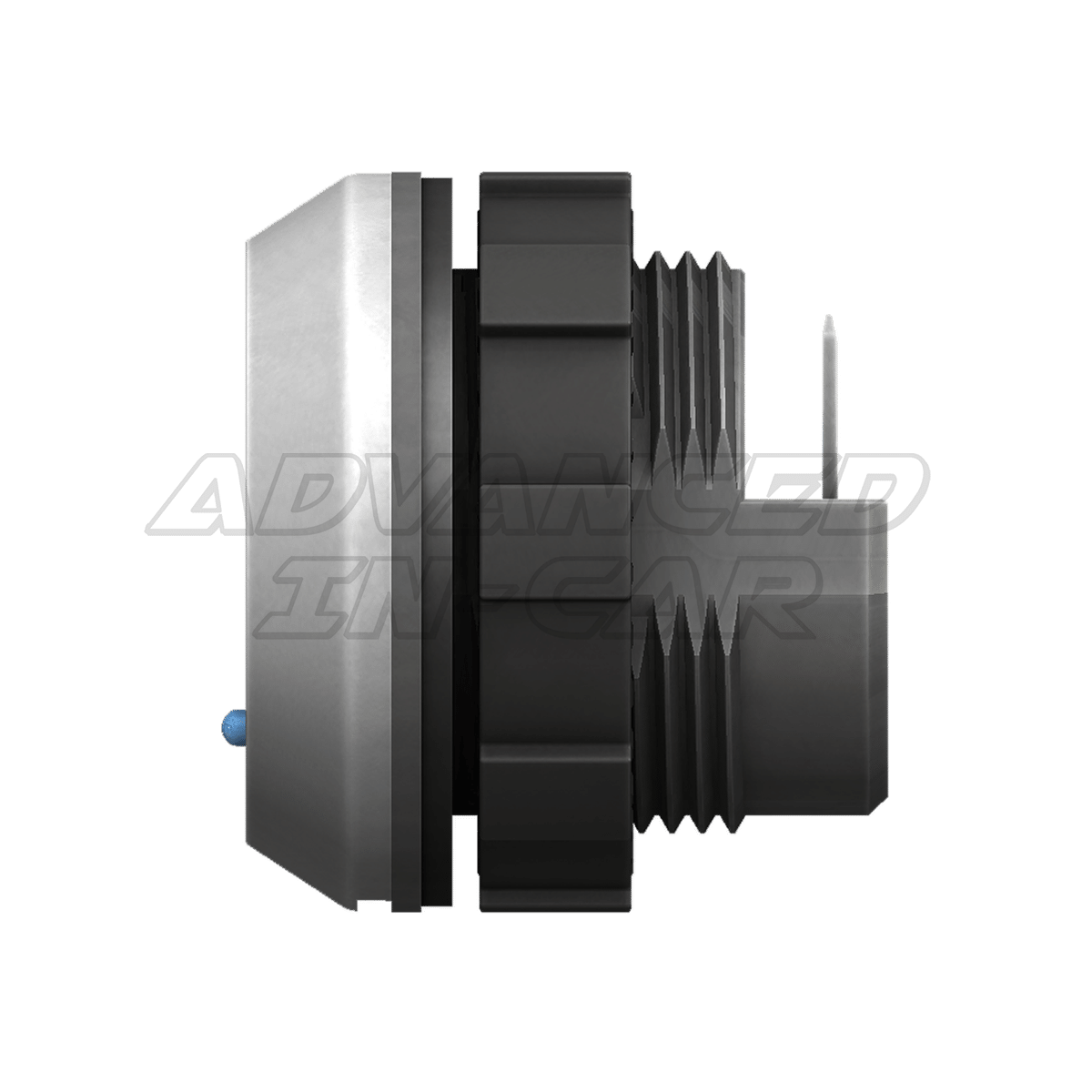

  • USB_Dual_Rear_Side
  • USB_Single_Front_Wiring
  • 30MM_HoleSaw
  • TrimTool

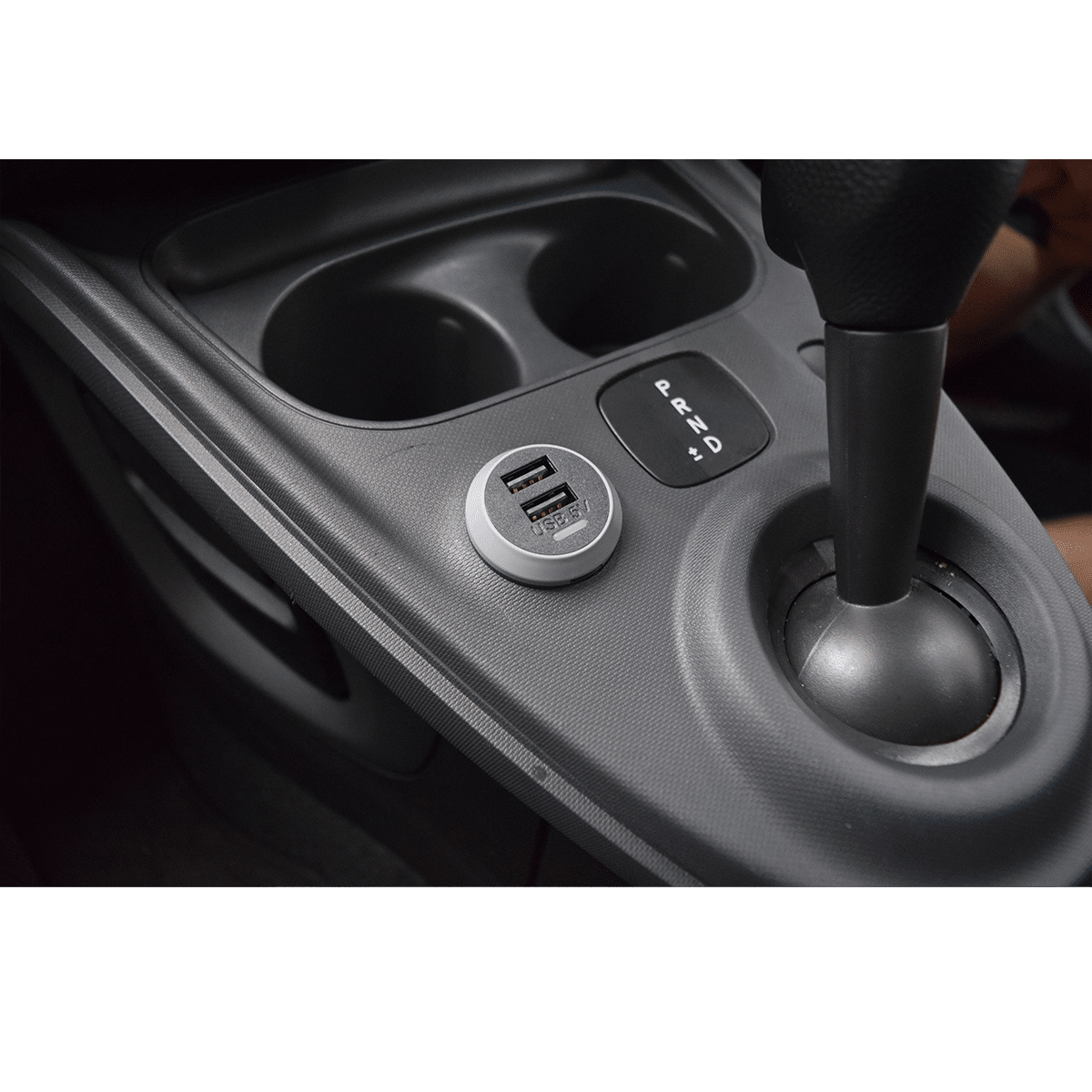

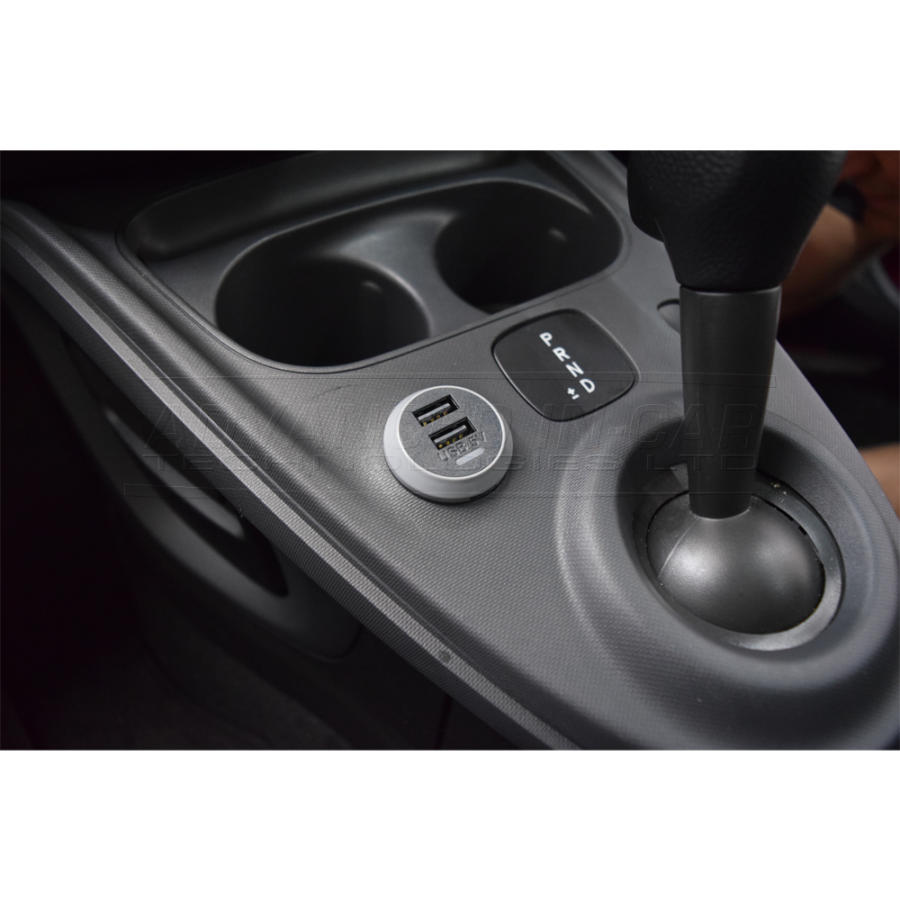

  • USB_Dual_Rear_Fitted1
  • USB_Dual_Rear_Fitted2
  • USB_Dual_Rear_Grey
  • USB_Dual_Rear_Black
  • USB_Dual_Rear_Behind
  • USB_Dual_Rear_Side
  • USB_Single_Front_Wiring
  • 30MM_HoleSaw
  • TrimTool
  • USB_Dual_Rear_Fitted1
  • USB_Dual_Rear_Fitted2

Description

In Stock

Rear-Fitting Dual 5V USB Charger That Offers 3A When Charging (Max 1.5A per socket). Suitable For 12V & 24V Applications. Fitting Kit Includes 1.3m Fused Wiring, 30mm Drill Bit and Trim Tool Set. CE & E Marked. read more

Description

Rear-Fitting Dual 5V USB Charger That Offers 3A When Charging (Max 1.5A per socket). Suitable For 12V & 24V Applications. Fitting Kit Includes 1.3m Fused Wiring, 30mm Drill Bit and Trim Tool Set. CE & E Marked. read more
SKU:
Du_15761
Category:
Weight:
1 kg
view all details

Price

£69.00

Quantity

- +

Total

£ 69

Description

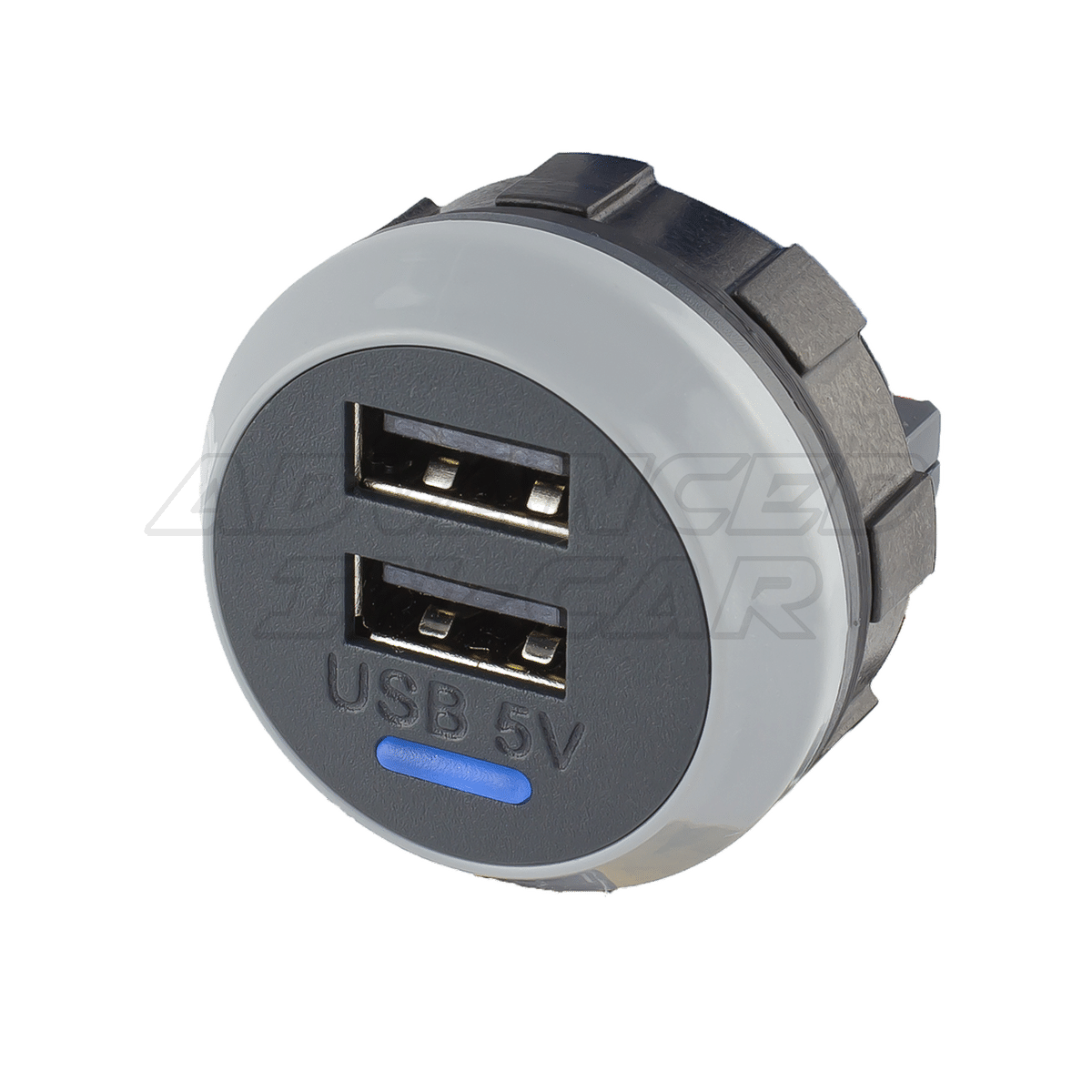

Dual Rear Fitting 5V (3A) USB Charger Kit

USB Charging in your vehicle is more important than ever now due to the multitude of devices we own from Smartphones to Tablets. Our Dual 5V USB Charger offers 3A (Max 1.5A per socket) when charging which ensures that you get the fastest / safest charge time possible for your device.

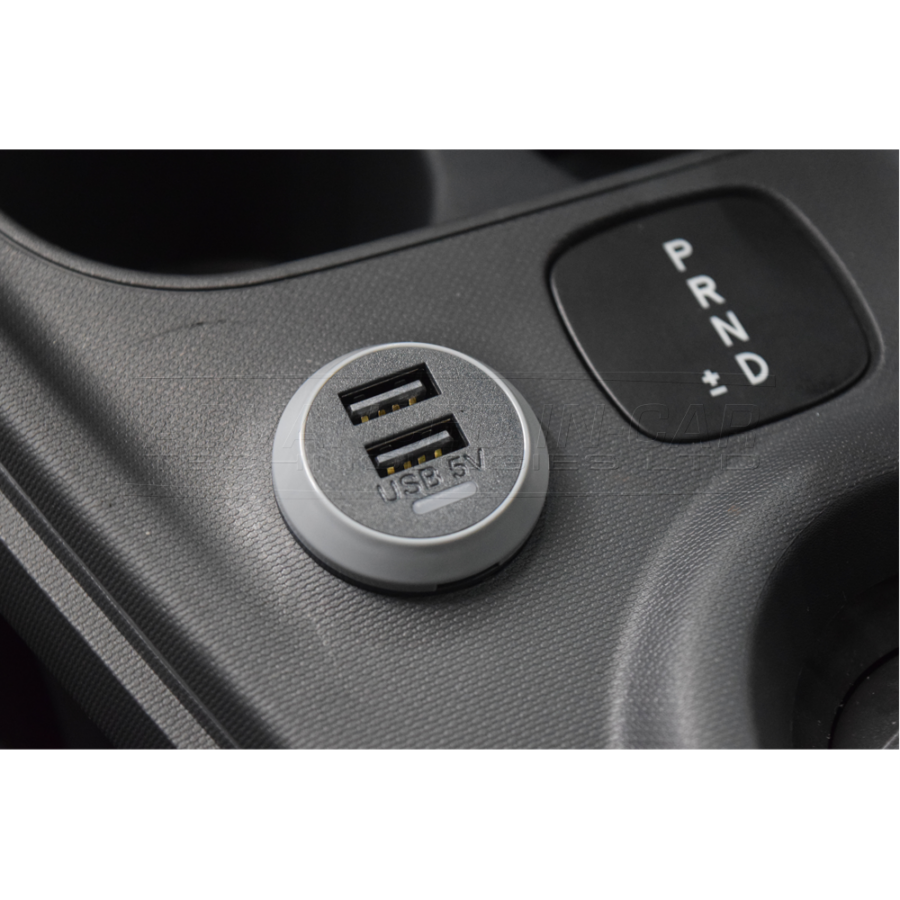

This system is a Dual USB charging system that can be fitted anywhere you want where you have access to behind the scenes, a good example is in your door card or Front A-Pillar (Which can be easily removed to allow you to install). It can be easily installed into any vehicle and allow both drivers and passengers to readily access power to charge any device connected via a USB lead.

This charger can be connected directly to both 12V and 24V systems without adjustment. The advanced electronic design will detect the charge status of the device and alter the charging process accordingly. This ensures that whatever device is connected, be it Apple, Android, iPad, phone or tablet, it will always be charged as fully as time and capacity allow.

There are lots of cheaper alternatives available online but through our testing, it’s very rare that they offer what they claim in terms of the power outputs. There is also the issue that cheaper chargers can cause interference with FM and Digital Radio systems. This charger is both CE and E-marked to allow for interference-free charging!

This charger also features automatic short circuit detection, so in the event of tampering or compromise, the unit will automatically shut down to protect not only you and your device but the vehicle it’s installed into. In the event of catastrophic damage, there is a built-in internal fuse to safeguard you.

Rather than just provide you with the USB charger we have put together a full kit to allow you to fully install it yourself and no need to go out and purchase special tools. You can either have this charger running on Ignition only or all the time depending on the application. Includes 3 different front casings to get the correct colour for your vehicle.


Top Features
  • Suitable for 12V and 24V Systems
  • 3.0A (double) max 1.5A per socket
  • Automatic Shut-down in the event of malfunction
  • Apple and Android compatible
  • LED output indicator
  • CE and E Marked
  • 3 Year Warranty

YouTube Video

Hymer Yosemite Camper Socket Upgrades! Mains 3-Pin 240V Socket & 2X USB Charging Sockets

Dual USB Rear Fitting Kit Fitted into VW Transporter T6


Included

  • Dual Port USB Charger

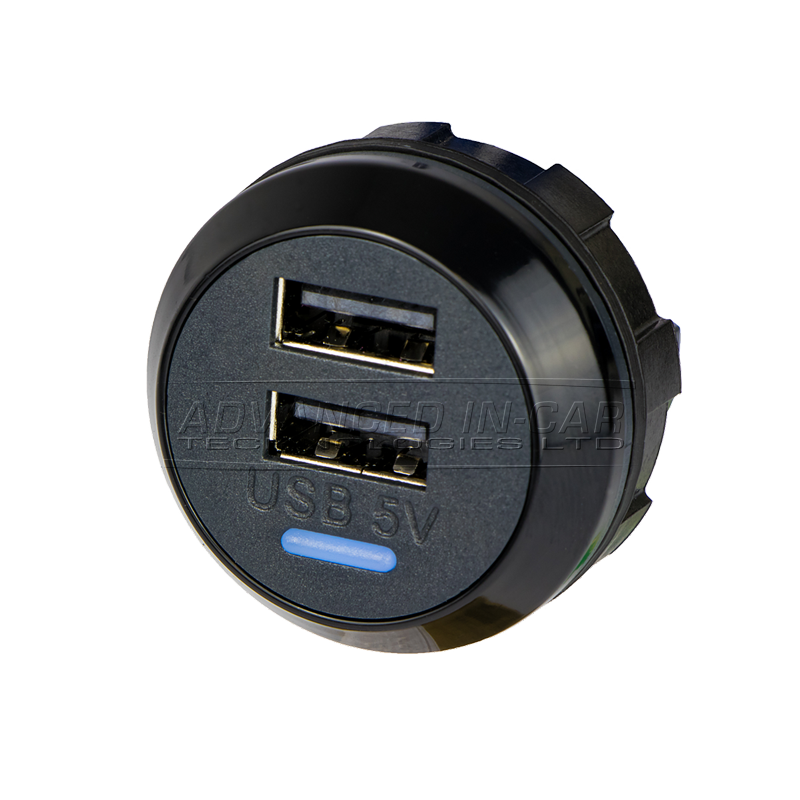

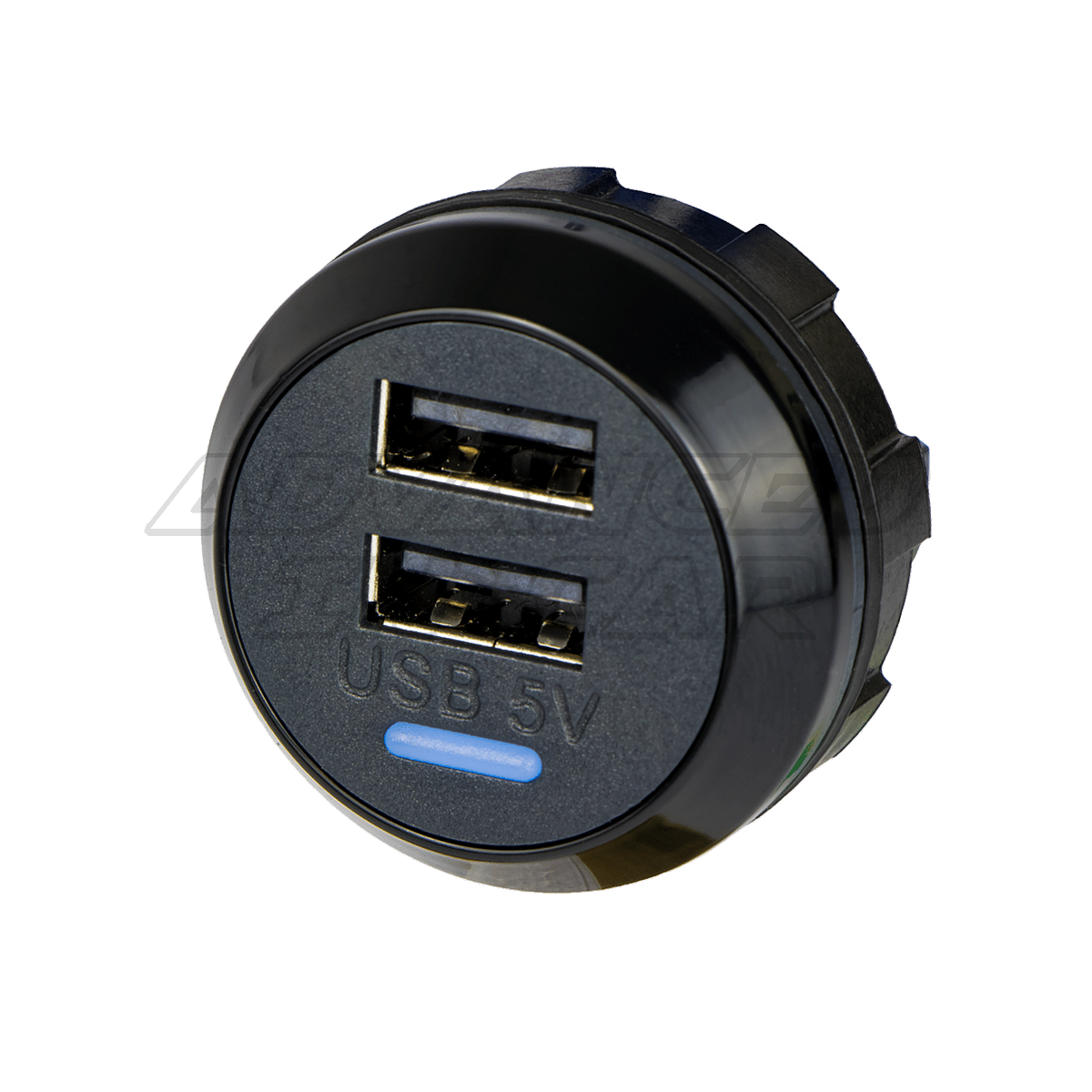

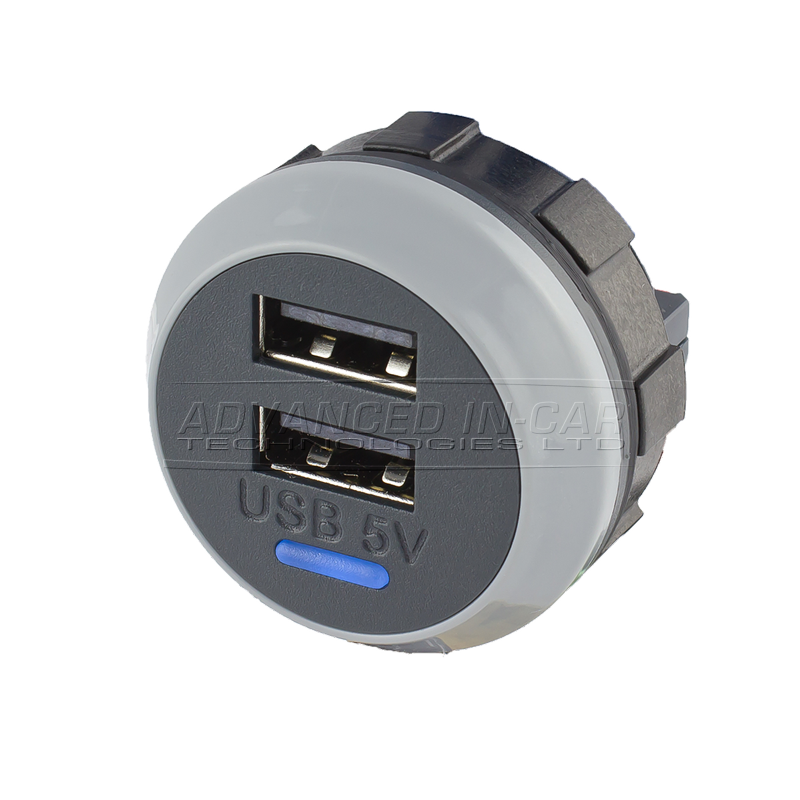

  • 3x Front Casing (Black / Dark Grey / Light Grey)
  • 1.3m Wiring Loom with Fuse Holder, 2A Fuse and Blade Connectors
  • 30mm Drill Bit
  • 4 Piece Trim Tool Set

Technical Info of Charger

  • Dimensions: Ø47 x 33; Hole Ø30
  • Weight: 27g
  • Input voltage range: 9-32Vdc
  • Output voltage: 5Vdc +/- 0.2V
  • Output Power: 3.0A (double) – max 1.5A per socket
  • Application: Charges all USB devices including Apple and Android
  • Transient voltage protection: Meets ISO7637-2 International standard for 12/24V vehicles
  • Output noise: <50mV pk-pk
  • Off-load current (quiescent current): <1.7mA
  • Power conversion efficiency: 90%
  • Operating temperature: -25°C to +55°C
  • Storage temperature: -25°C to +100°C
  • Operating humidity: 95% max., non-condensing
  • Casework: Black polycarbonate body

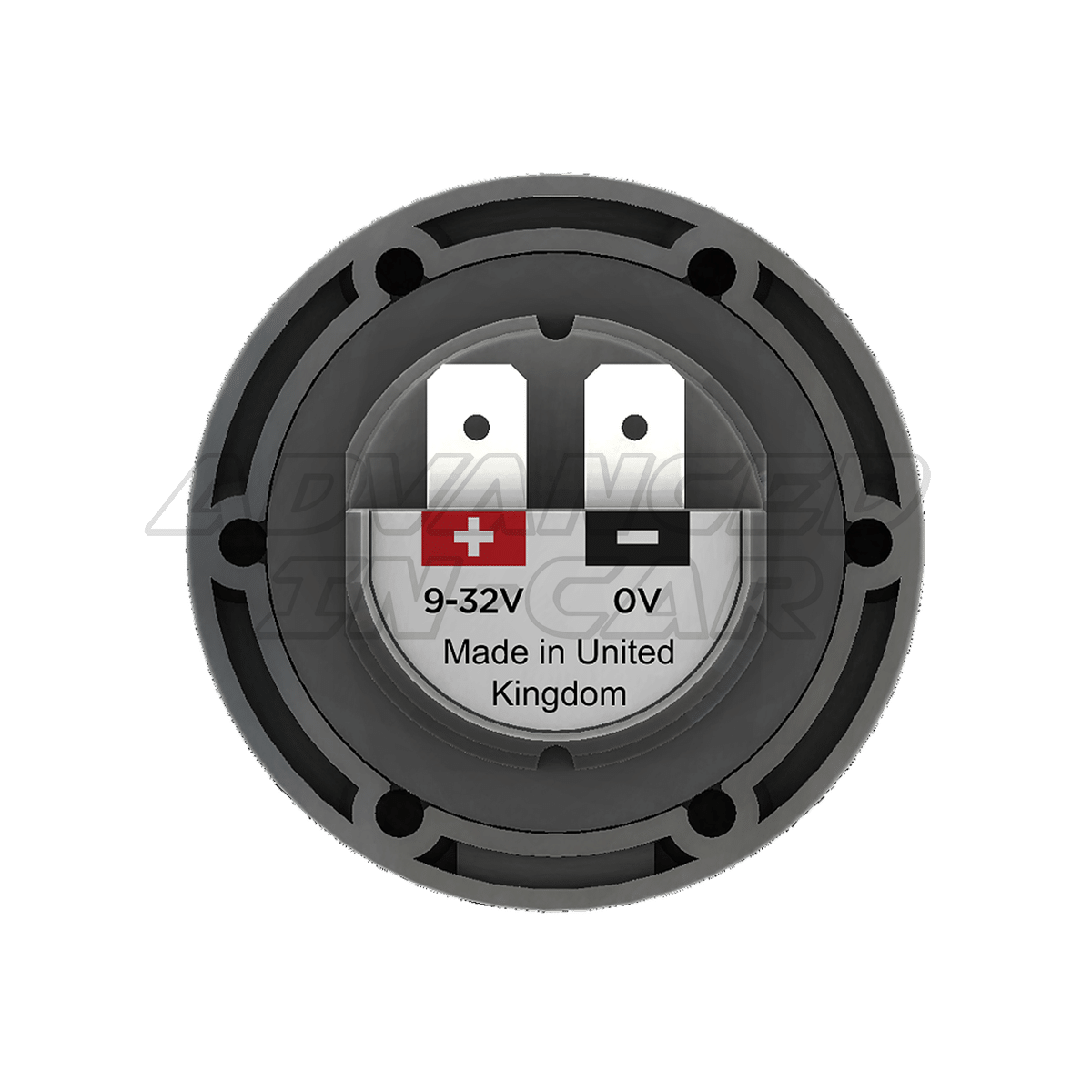

  • Connections Input: 6.3mm push-in flat blade connectors
  • Output: USB type A single socket/double socket – tested to 10000 mating cycles
  • Output indicator: Blue LED output indication
  • Markings: CE and E (automotive) marked
  • IP Rating: IP30

Approvals:

  • 2014/30/EU The general EMC directive
  • Regulation 10 The automotive directive
  • 93/68/EEC The CE marking directive
  • AES5, ECE R118.02 and UL 94: V-0

Designed to:

  • EN50498, EN61373 and ISO 7637-2

Please Note:

  • We always recommend professional installation where possible. Failure to install correctly could result in damage to the charger, your device or your vehicle.
  • This is a Dual USB Charger only
  • For Rear Fitting Only
  • Installation by us is available, please get in touch for more info

If you are looking for a commercial application/supply of these units in quantity then please get in touch with us directly
