Volkswagen Crafter Reversing Camera
£349.00 – £599.00
OEM High Level Brake Light Reversing Camera Suitable For The VW Crafter read more
Without doubt one of the largest commercial vehicles (Short of it being a truck) available on the market it’s a big old beast and is near on impossible to reverse safely without any additional aids. As many will know the Crafter is basically a Mercedes Sprinter but with a few slightly different external features.

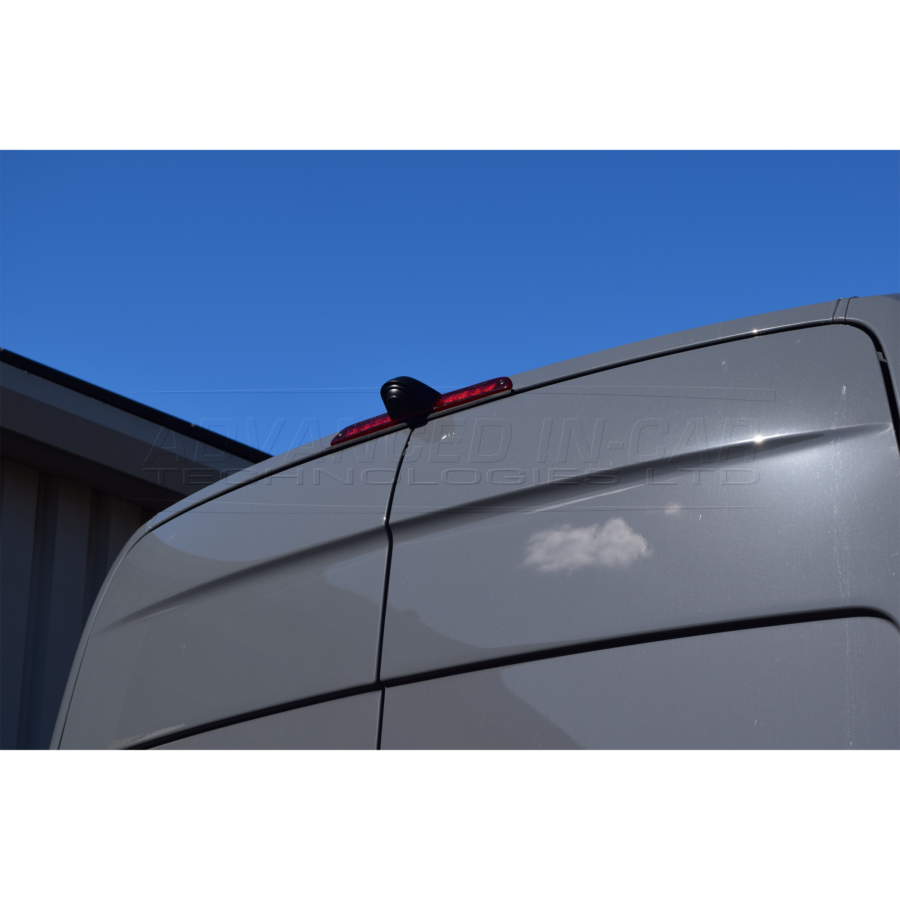

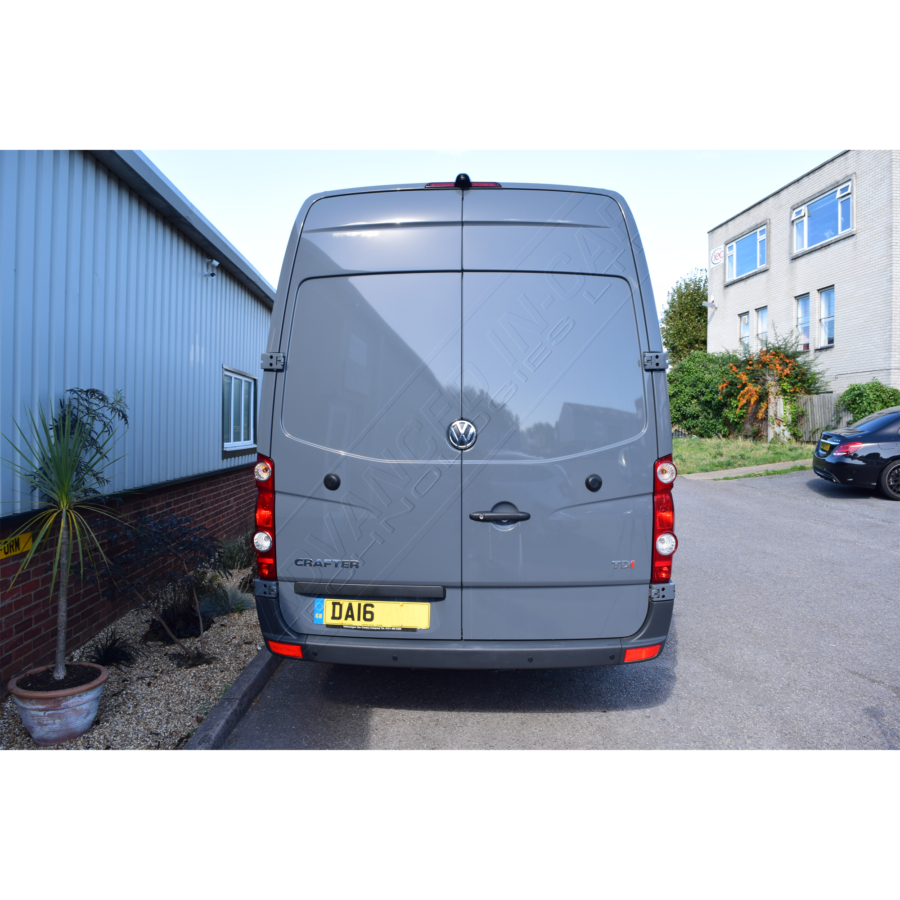

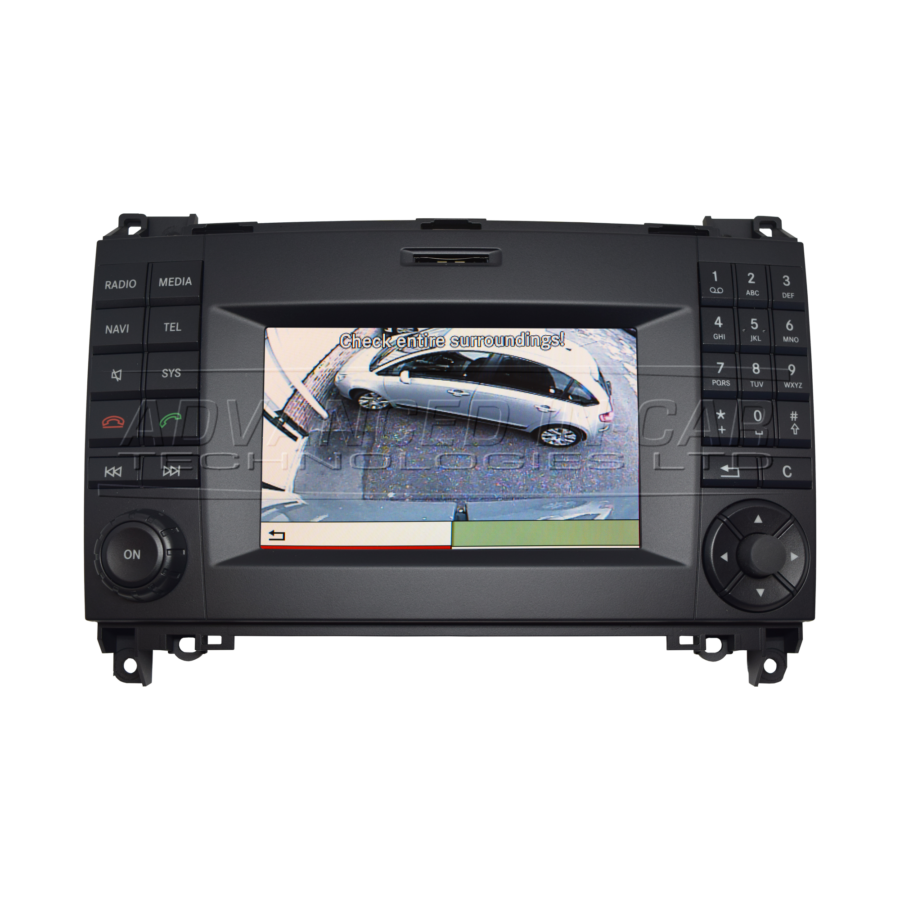

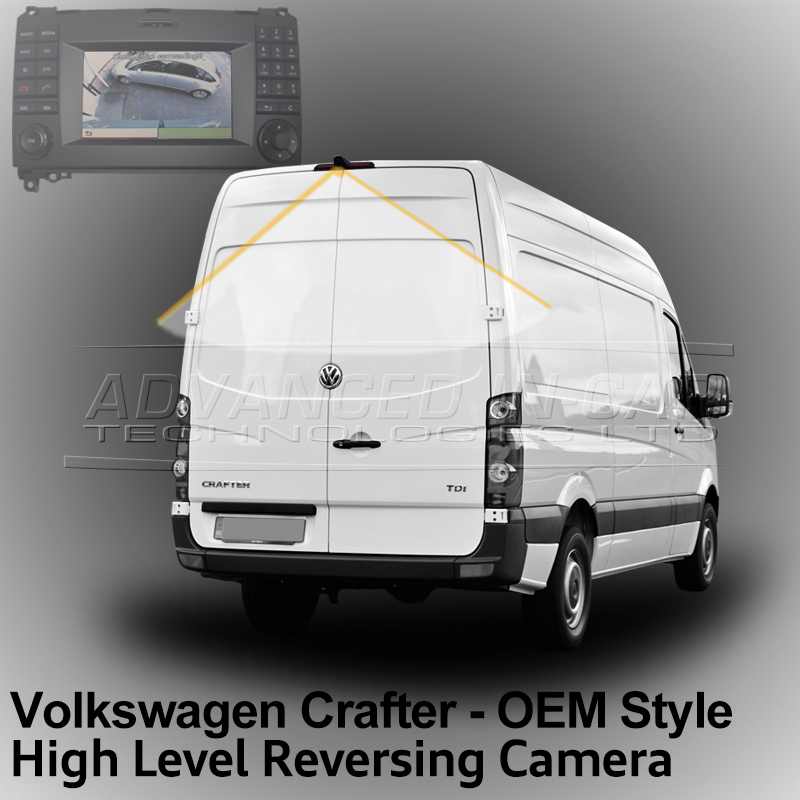

Here we have an OEM Style High Level Brake Light Reversing Camera that integrates to the rear of the Crafter to give you an impressive rear view image on your RNS 6000 (Audio 15) or Aftermarket system installed at the front.
Using an OEM spec design means that the integration with the vehicle is just like factory but cheaper!
This kit is suitable for the VW Crafter that has the RNS 6000 also known as the Audio 15. This is the “Nav Ready Sysyem” as you can see in the images. Included in the kit is an Activator dongle that allows you to code the vehicle to accept the camera on to the factory stereo system. This system can also be integrated with an Aftermarket Stereo with a Reverse Camera Input ot Rear View Mirror Screen (Get in touch if you want to know more on how we can do this)
- 1/4″ CMOS image sensor
- TV system: PAL
- 580 TV lines
- Guide lines selectable via green wire
- Power: 12V DC
- Built in microphone (Only works with stereos that offer this)
- 170° Viewing angle
- Resoultion: 762 x 504
- Min illumination: 0.1 LUX
- Lens: F2.0
- 6 Night vision LEDs
- IP67 rating
- 4 Pin screw video/power connection
- 150mA power consumption
- E Marked E13
- Dimensions: 22 x 39 x 22mm

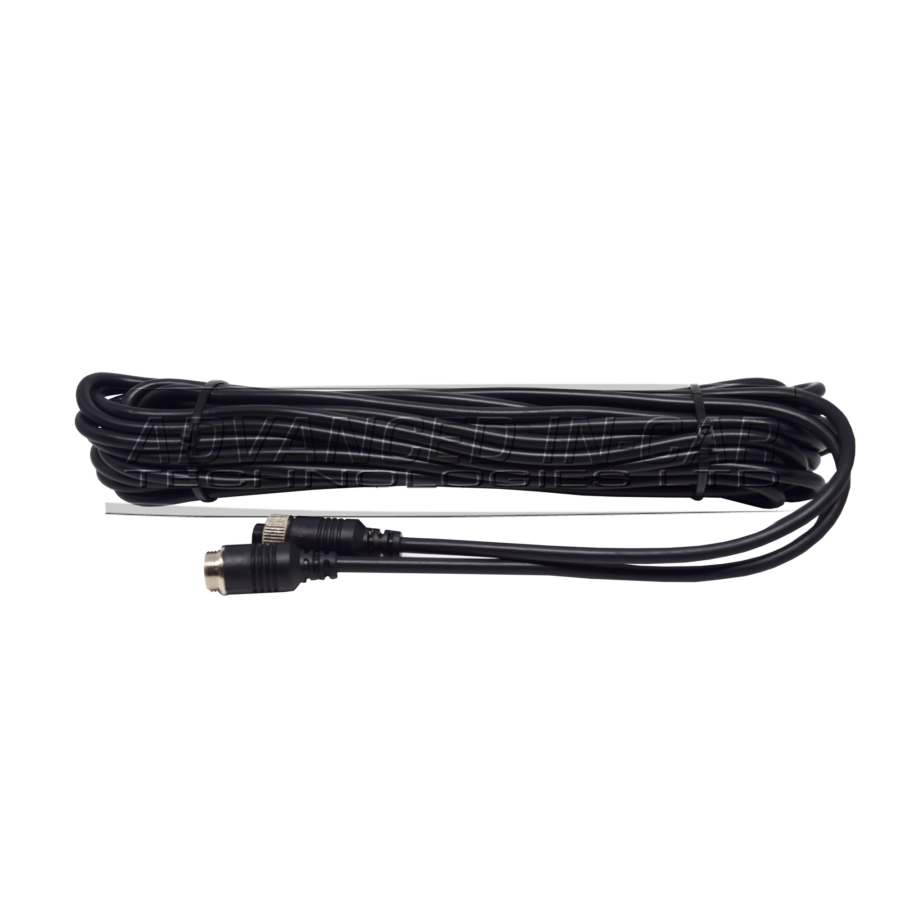

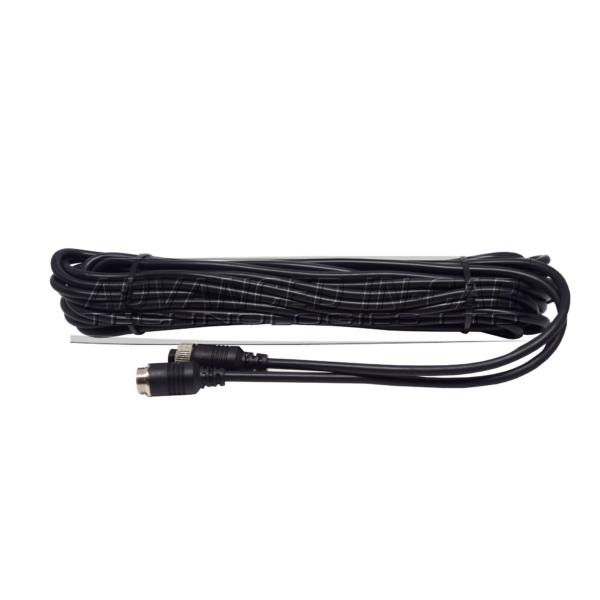

- 10M AV Cable
Scope of Delivery

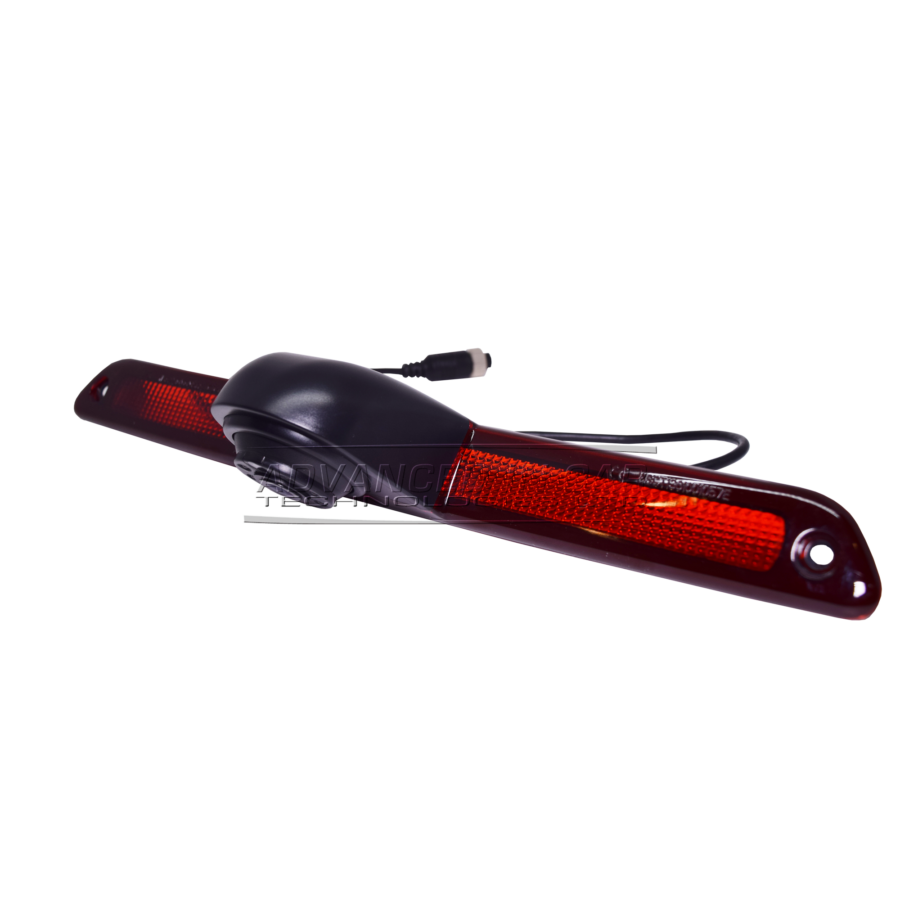

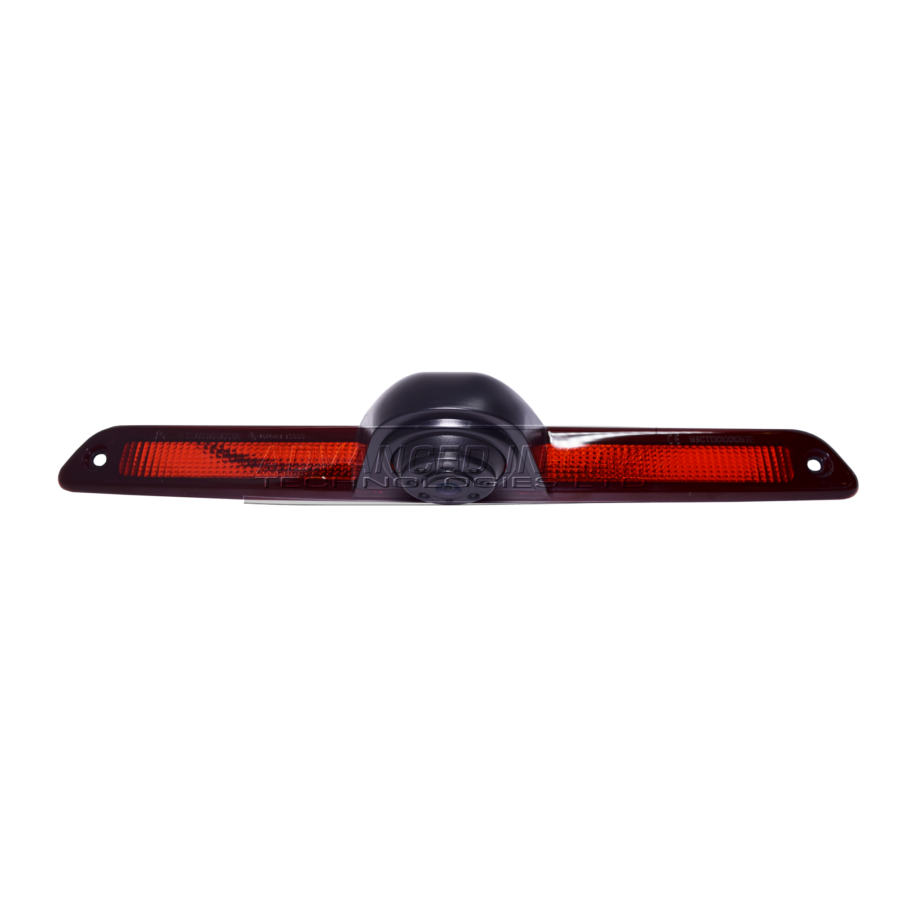

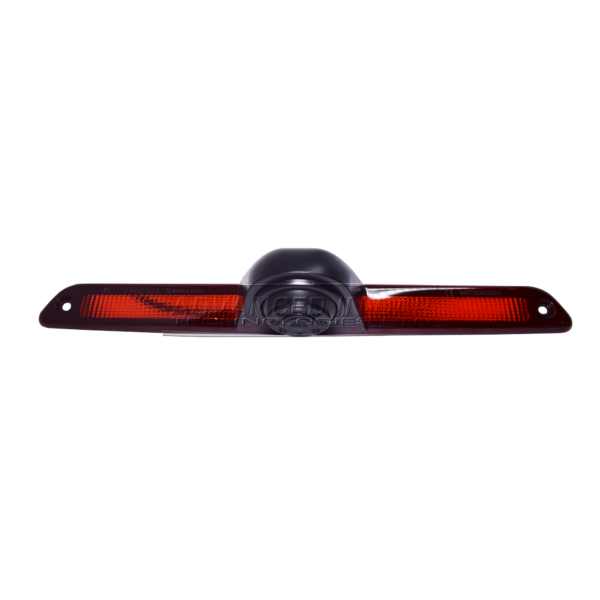

- High Level Brake Light Camera
- Video Interface

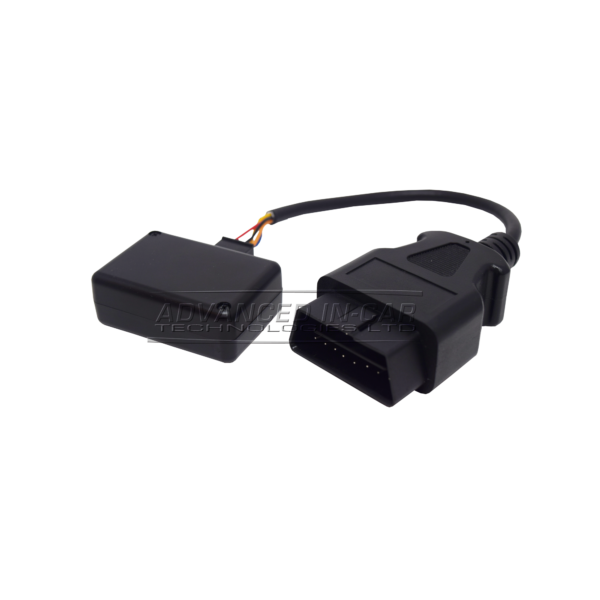

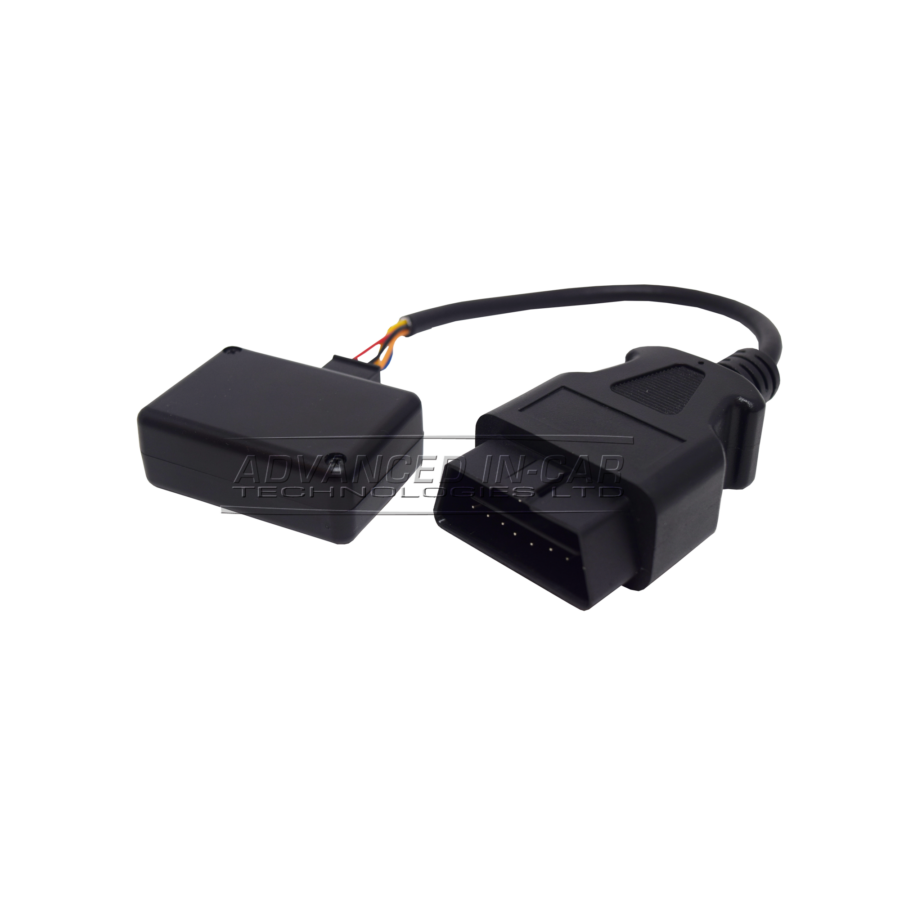

- Coding Dongle

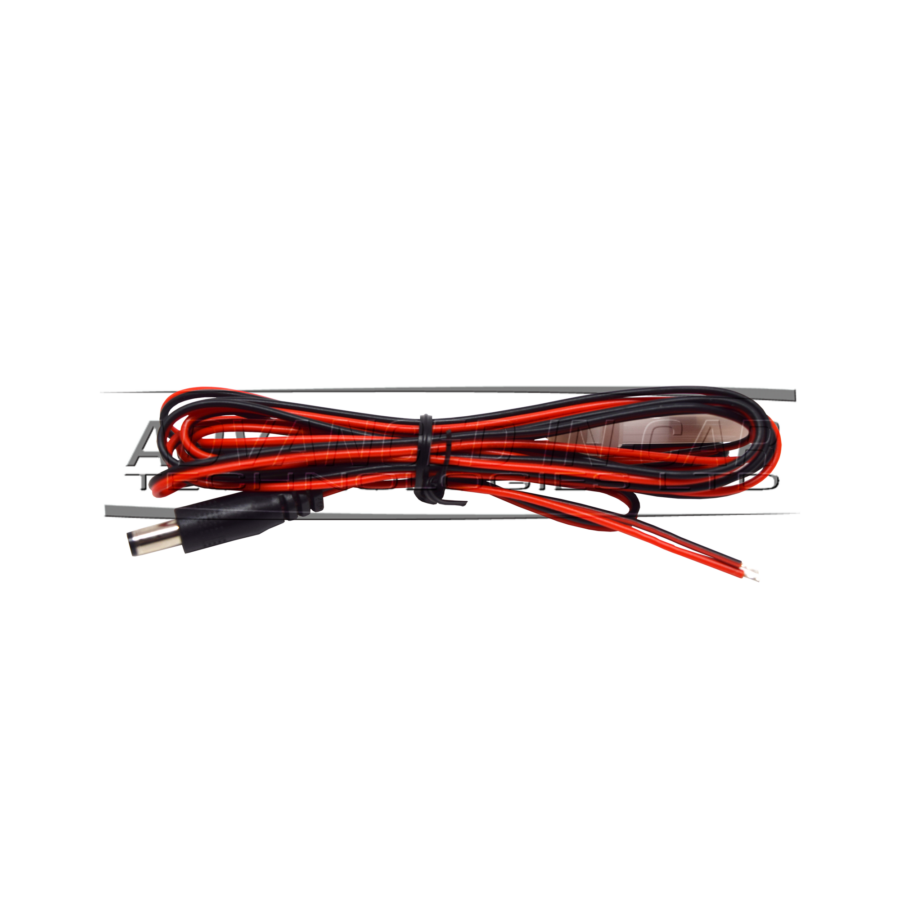

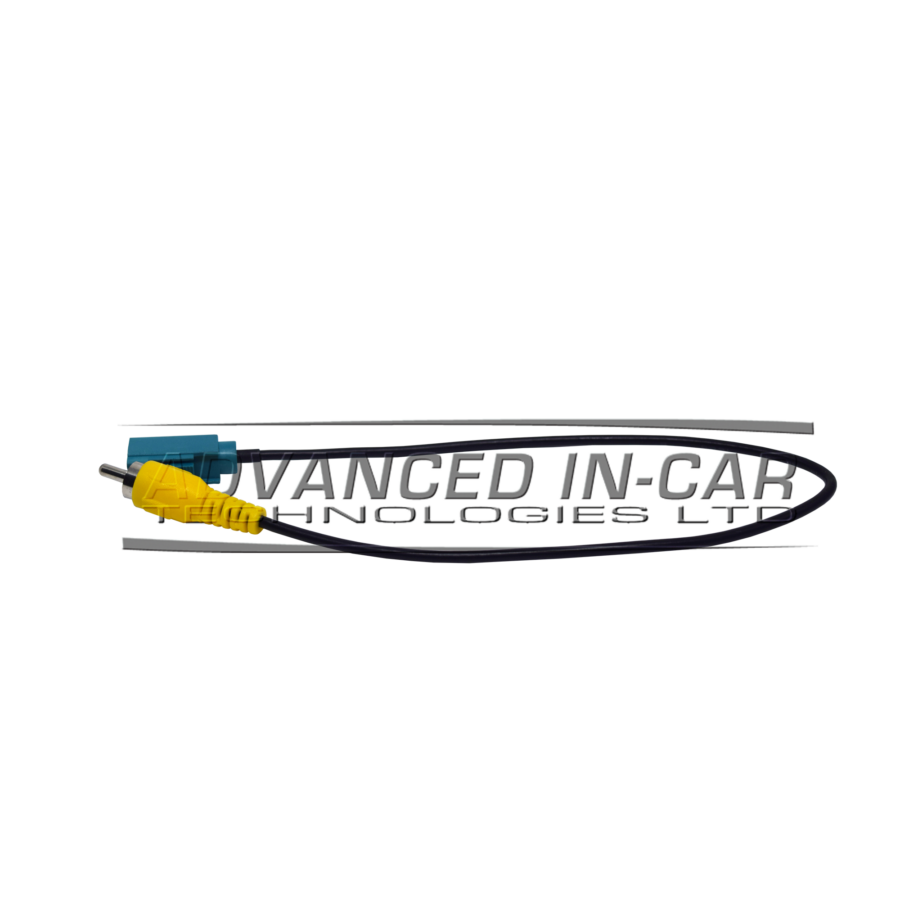

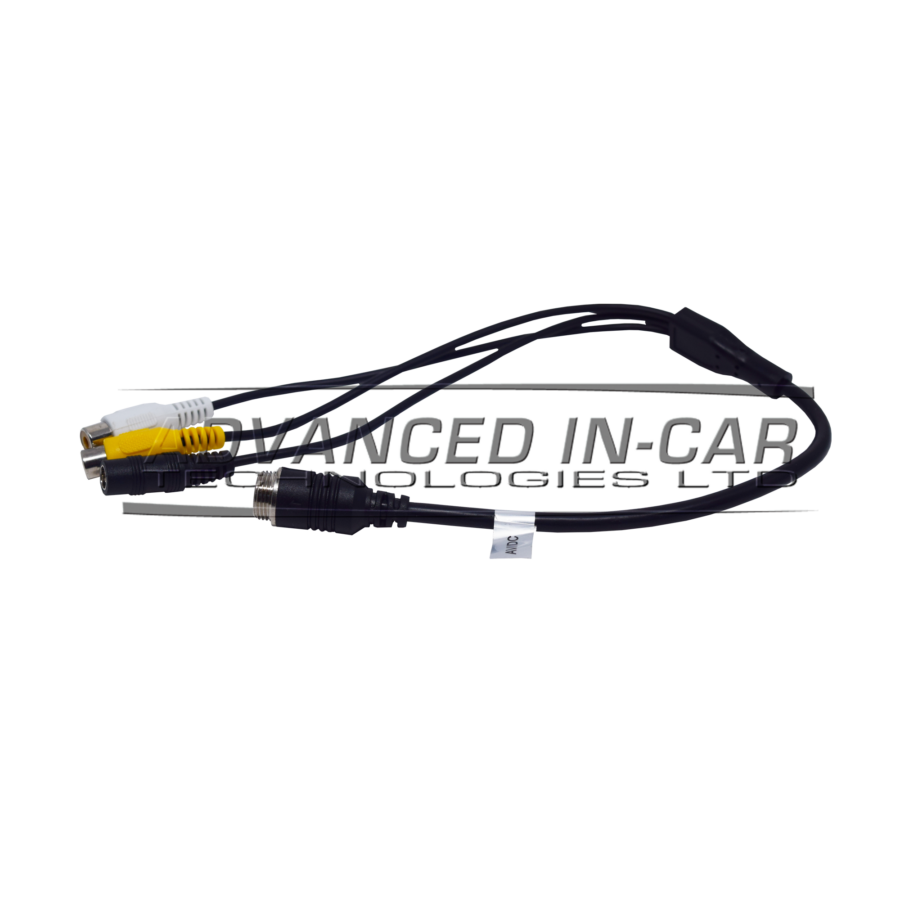

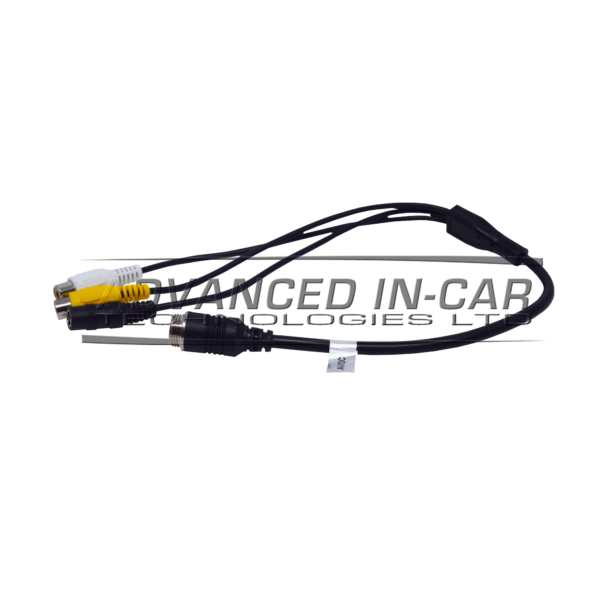

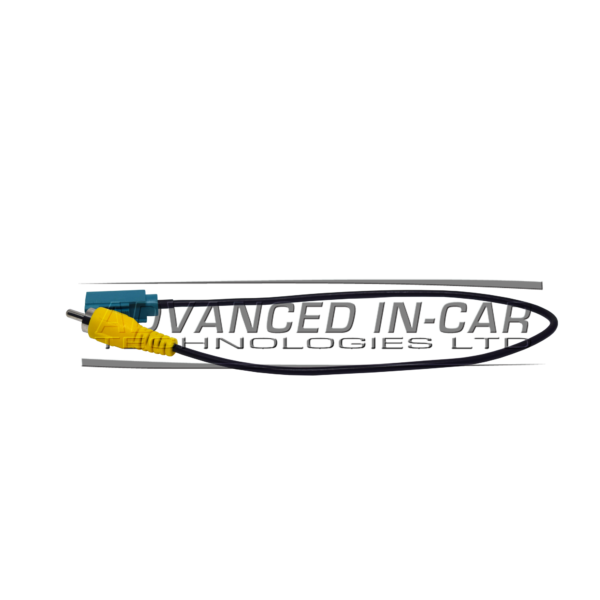

- Wiring Harness
- We can offer discount if you have a FLEET of VW Crafter Vans that need this retrofit doing.
- This kit does not include the Audio 15 Headunit (The image is for demo purposes)
- Due to the type of work involved and what is required we may not be able to offer on site installation but we will confirm this when you get in touch with us prior to purchase.
- 1.0 kg
