Description

Universal Wedge Reversing Camera with Optional Guidelines. This camera comes in Gloss Black in NTSC Format.

Read More

£119.00
Item added to wishlist View Wishlist
Item removed from wishlist

Please Note:

  • If fitting this camera with a Genuine Stereo you may need a converter or interface specific to that system to be installed at the same time (which may increase costs).

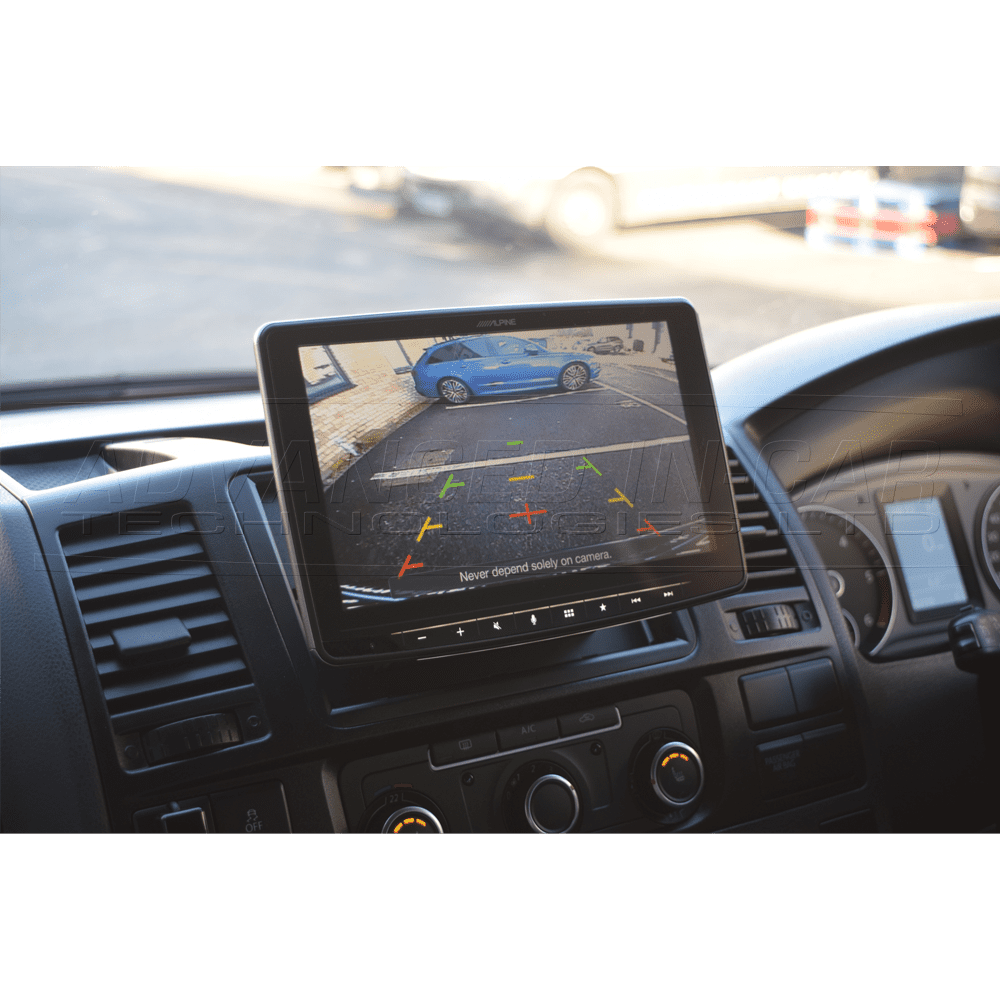

  • Guidelines & Warning Messages shown in the image and video are generated by the Alpine System
  • Alpine Halo 9 is for demo purposes only and not included as part of the kit
  • You will be required to drill a hole to allow this camera to fit
  • Installation price may vary if you have a modified or converted vehicle. We suggest you get in touch directly prior to the purchase

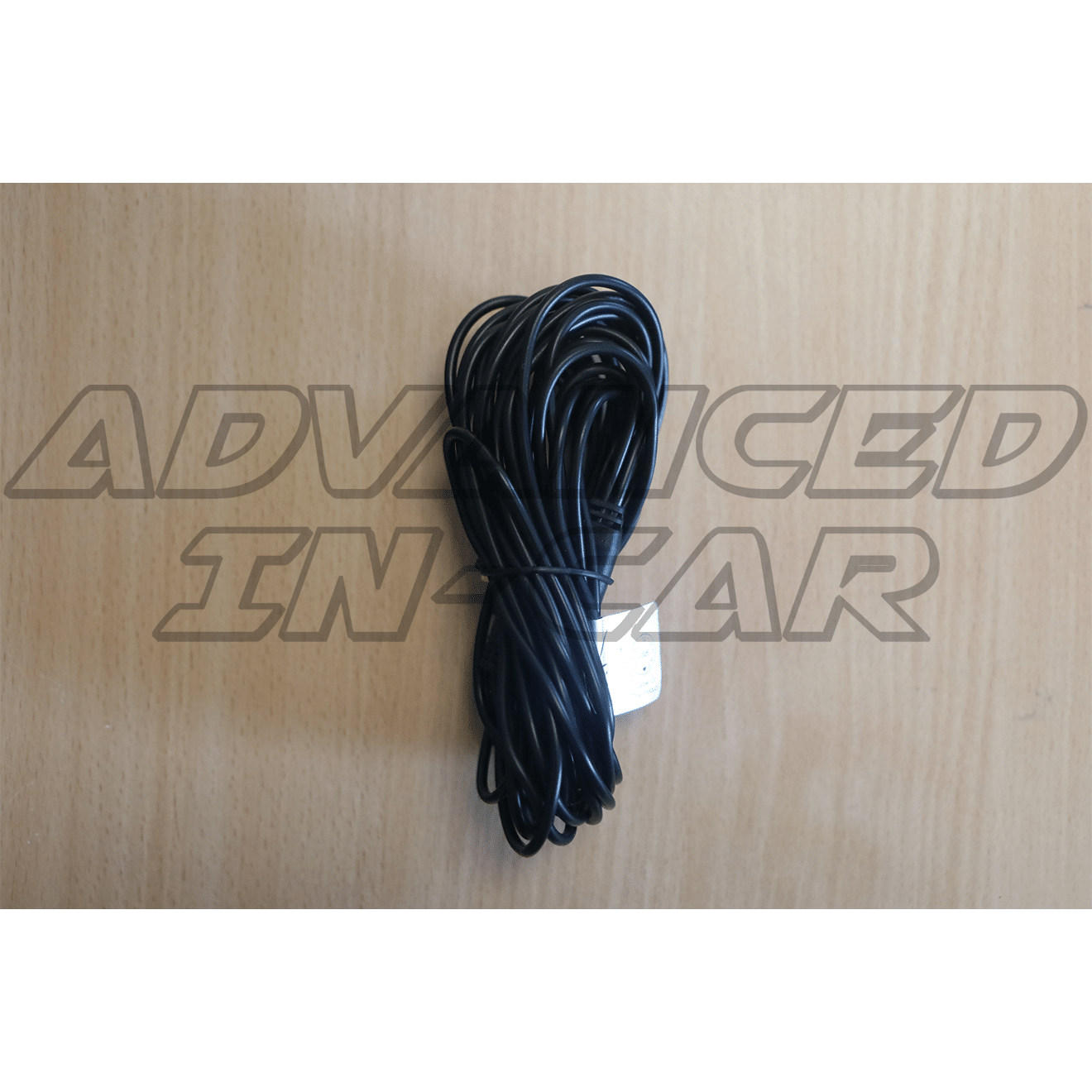

  • Depending on Camera Placement On some Double / Barn Door Based Vehicle you may require a 2M Male to Female Phono Extension Cable (Available as an Add-On from us). Alternatively, you can buy a Male-to-Male Extension and Female Adaptor

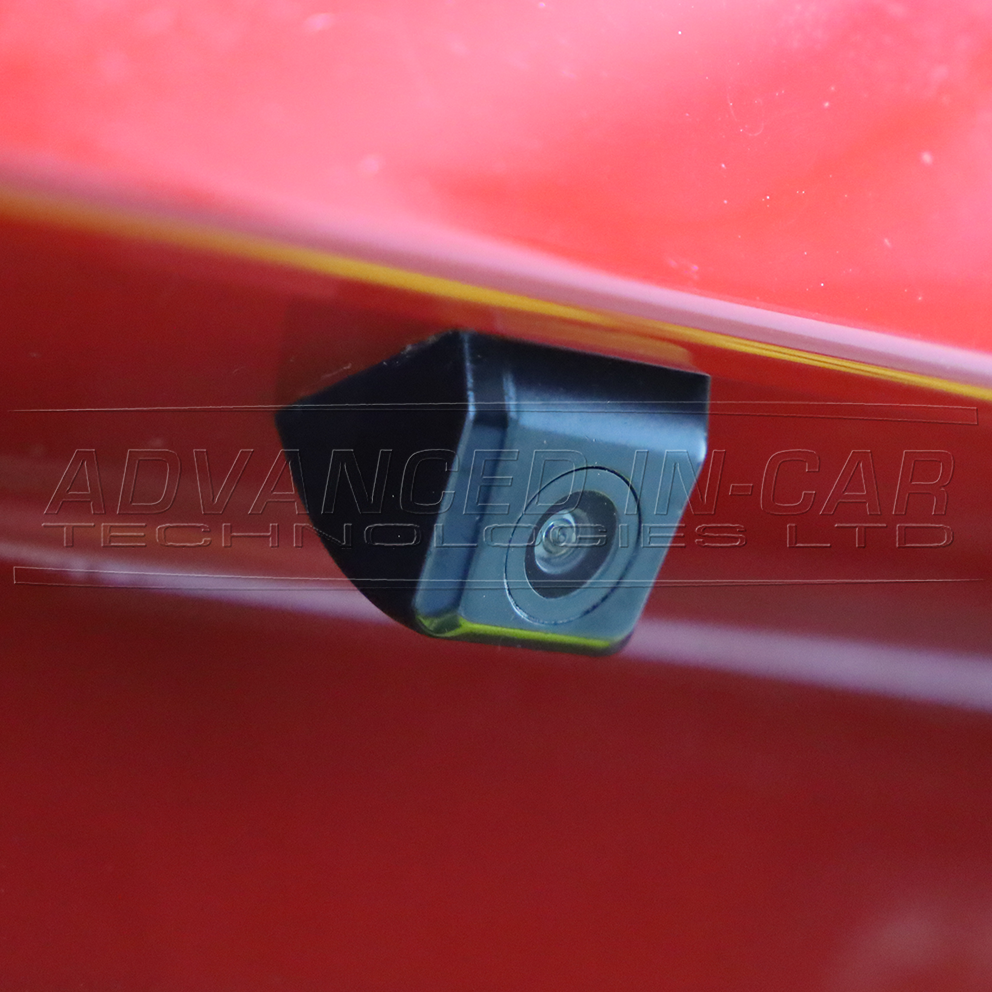

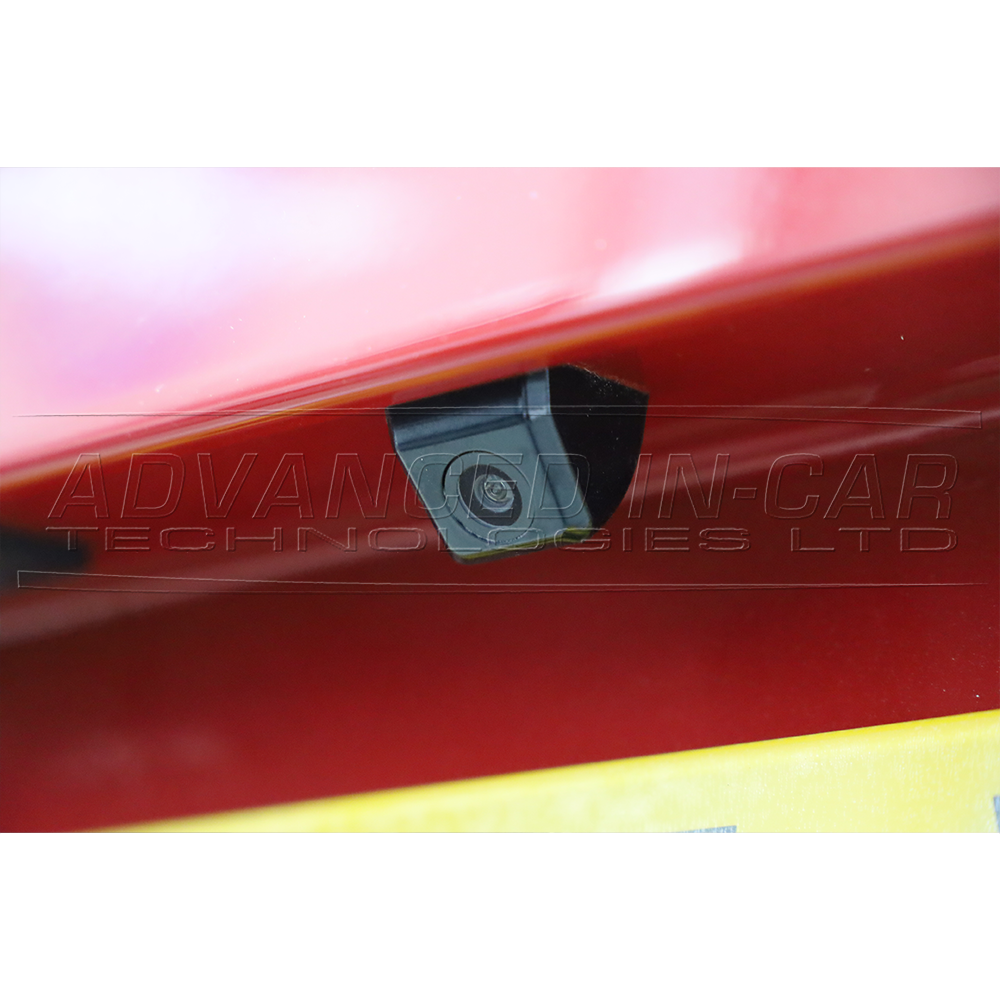

Wedge Reversing Camera

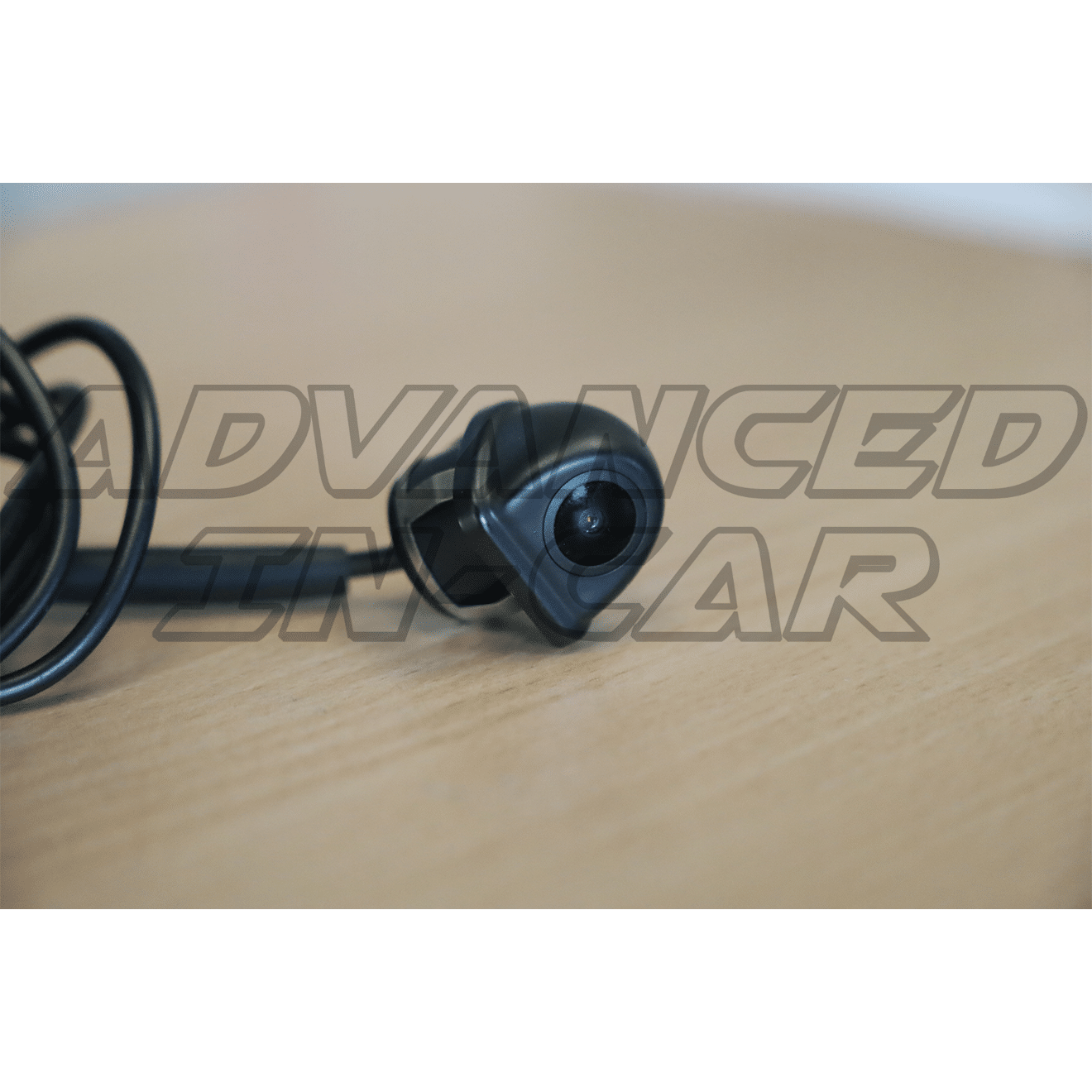

Premium Metal Reversing Wedge Camera that not only looks good when installed but performs very well in various conditions with a great picture. A lot of Universal Cameras claim to be great but fail to perform (We have tried loads of different versions) but this one certainly is one of the best.

This Camera comes in Gloss Black in NTSC  Format.

Due to its great shape and being universal will install into pretty much any vehicle (As long as there is a suitable lip) and any Aftermarket / Genuine stereo system that can support a Reversing Camera.

This Camera has the ability to be fitted horizontally or vertically with the ability to mirror the image depending on how it needs to be installed. It also features “Fixed” Guidelines. These functions are activated by cutting lines on the wiring loom.

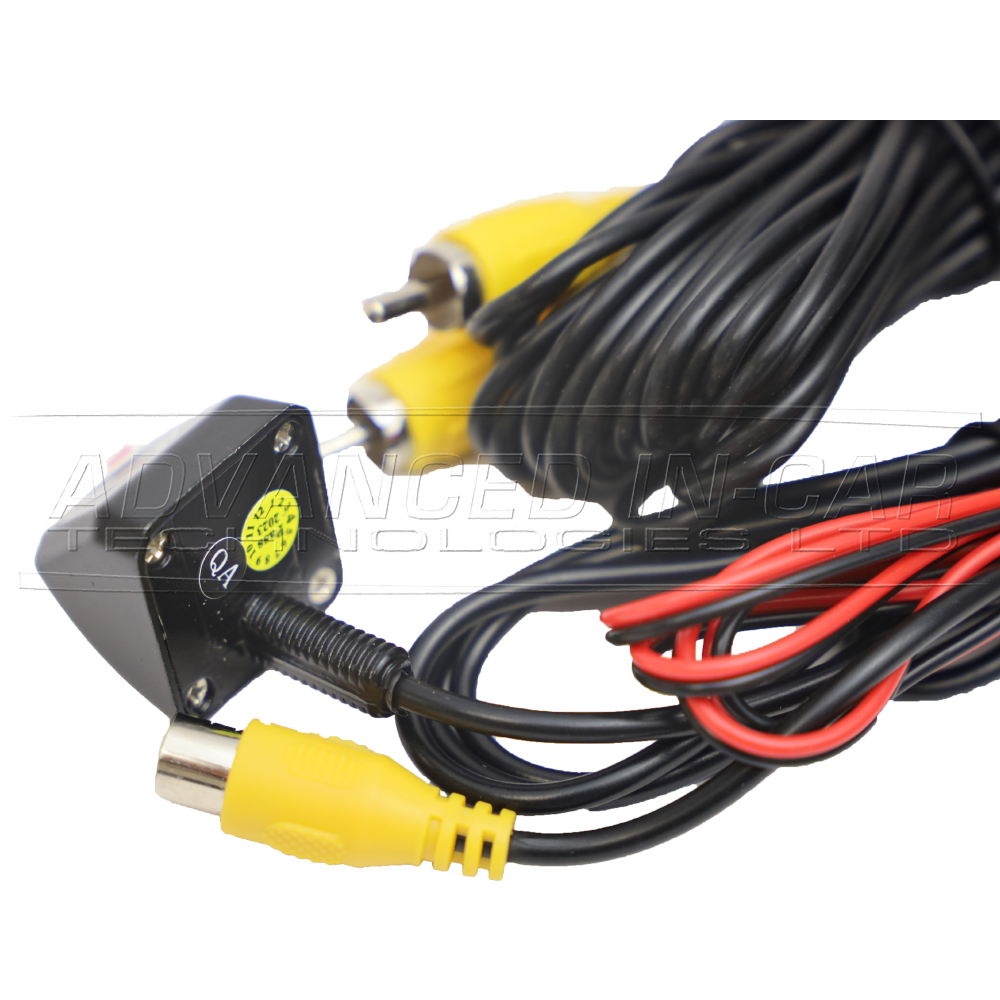

Uses a standard Phono / RCA Yellow connector which the majority of Aftermarket Stereos can support.

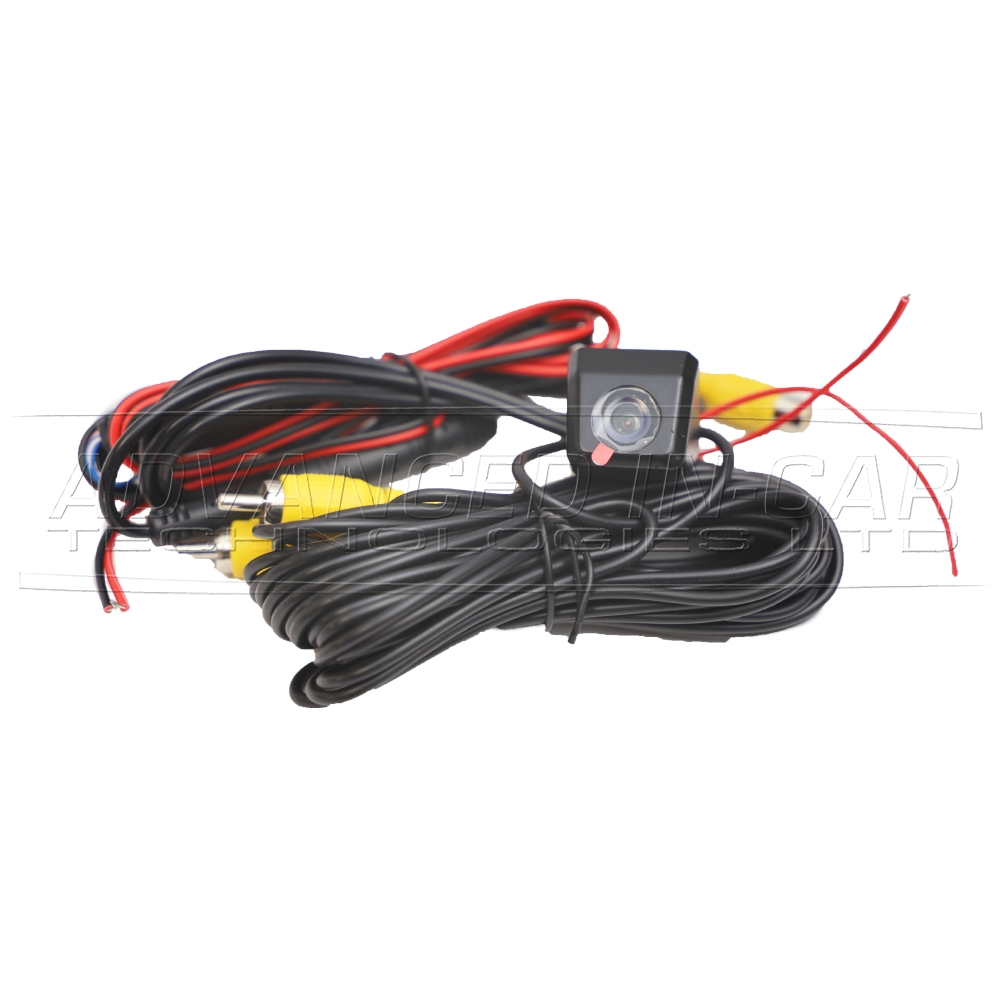

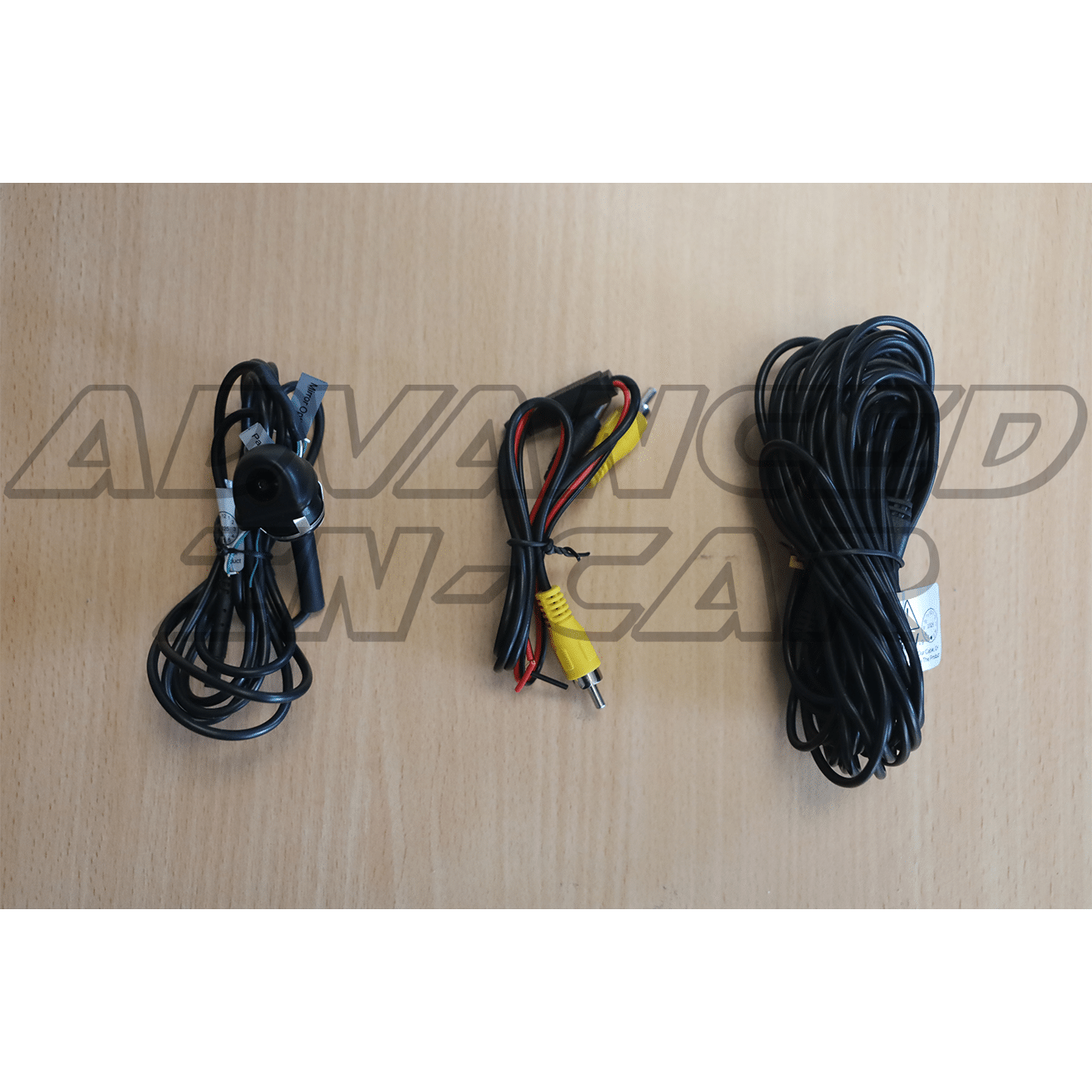

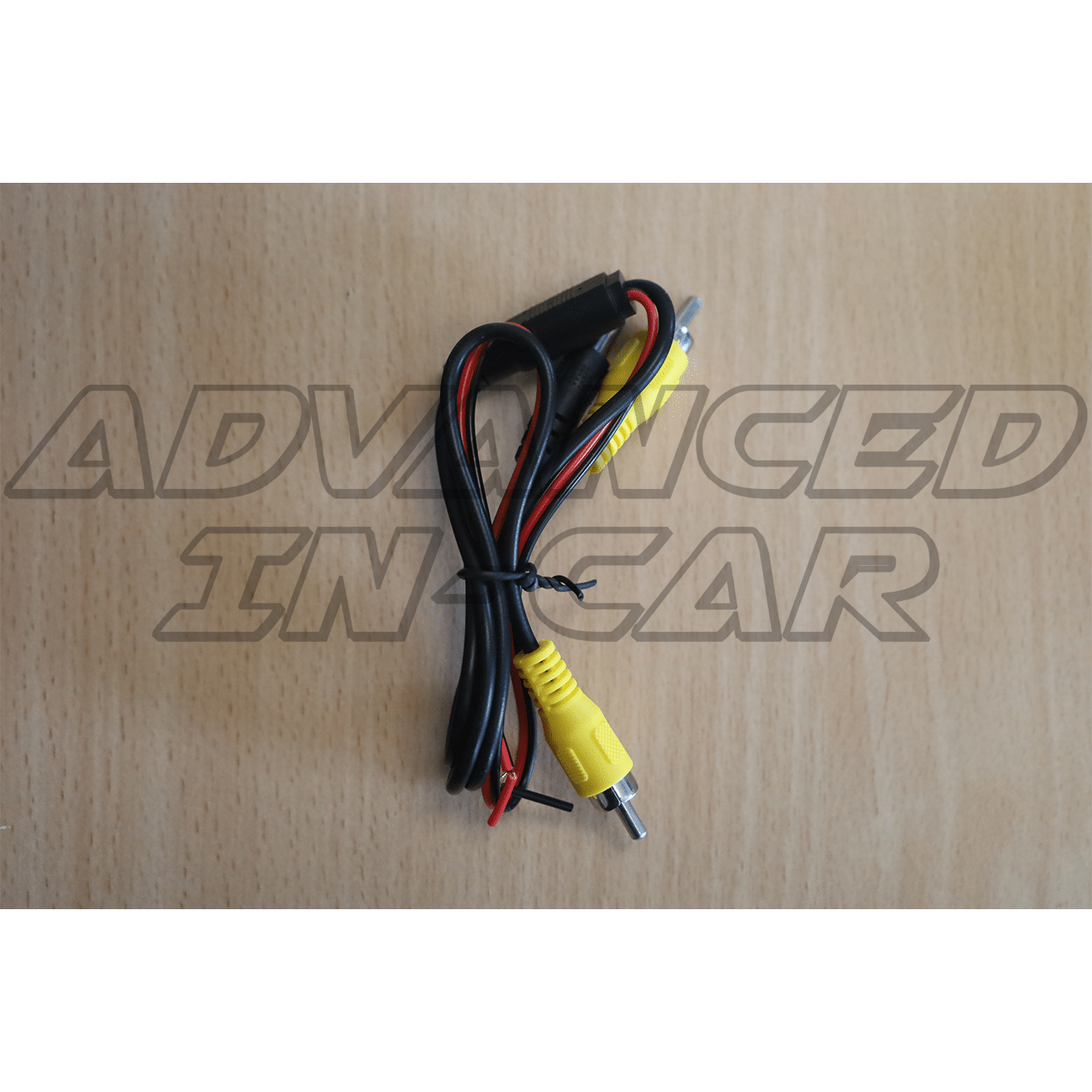

This universal wedge reversing camera comes with a wiring loom and a basic wiring guide. It’s a simple system to install but we would always recommend installation by a Professional Automotive Electrician.

Specifications
  • TV system                                          NTSC
  • Output resolution                           576i
  • TV lines                                               520TVL
  • Guidelines                                          Yes – selectable
  • Mirror image                                     Yes
  • Night vision IR                                   No
  • Audio                                                    No
  • FPS                                                        25
  • Effective pixels                                  720 x 540
  • Viewing angle                                    110°(H) 100°(V)
  • Backlight compensation                Auto
  • White balance                                   Auto
  • Min illumination                               0.2 LUX
  • Power consumption                        140mA
  • Operating voltage                            12V DC
  • Dimensions                                        32mm(W) 34mm(D) 24mm(H)
  • Connection type                               RCA video
  • IP rating                                              IP68
  • Casing material                                Die cast aluminium
  • Fly lead length                                  400mm
