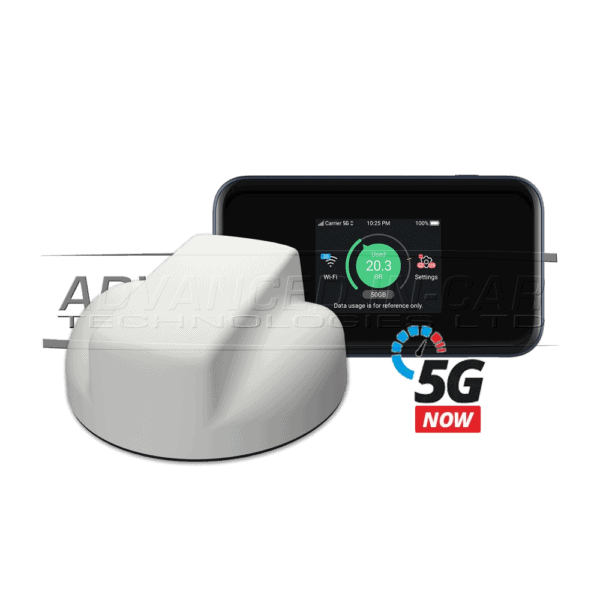

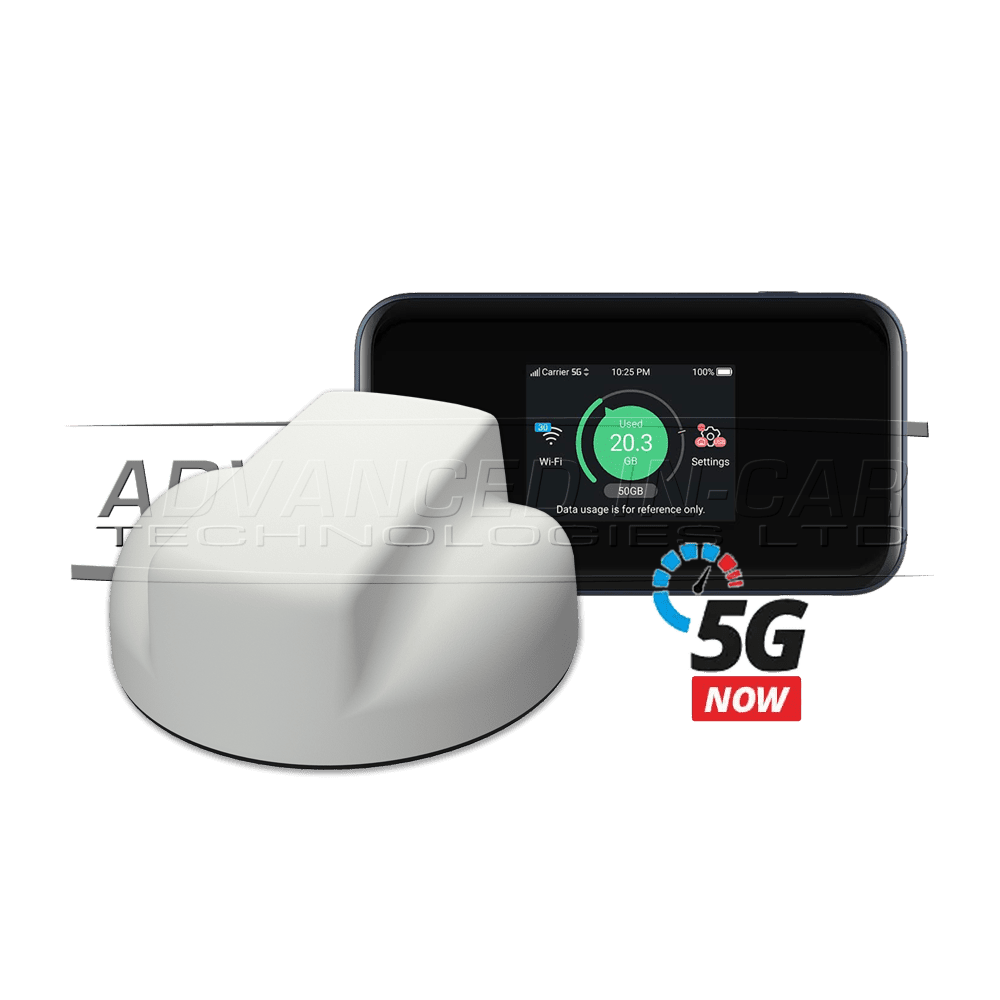

Motorhome 5G Now Compact Pro Wifi – Smart Antenna Compact

The 5G Now Compact Pro has an impressive, high-level specification offering even the most advanced user everything they need to stay connected whilst travelling. Ideal for 2 or more users, streaming TV content and business use in rural and remote locations across the UK and Europe.

With its LCD touch screen interface and colour display the Compact Pro is both easy to use and packed with performance. Providing a secure wireless connection achieving incredible download speeds for up to 32 devices and one wired device, it delivers for even the most demanding users.

YouTube Video

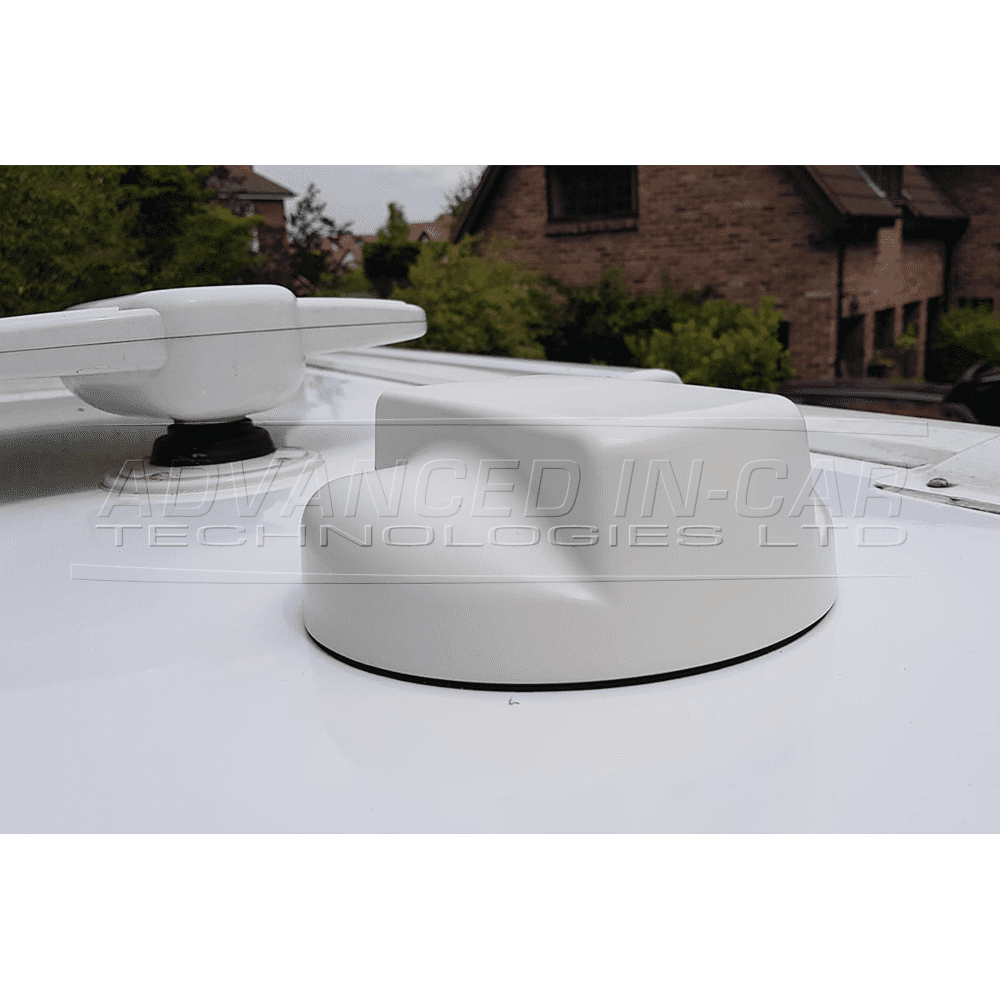

An example of the 4G System Installed into a 2020 Elddis Majestic Motorhome

Installation Options

  1. Supply Only – You will receive a FULL Kit with Instructions
  2. Installation at AICT – You will need to bring the vehicle to see us here in Poole, Dorset
  3. Nationwide Installation – This is dependent on location and if we have a suitable engineer or workshop near to you. Some vehicles will be a workshop visit only

Top Features:

  • Fully certified and patented 3G/4G/5G roof antenna
  • 80cm antenna cables
  • 5G Compact Pro unlocked router
  • Quick Mount dock
  • 12v hard wire vehicle power supply
  • Full antenna installation instructions and operating manual
  • Motorhome specific installation kit
  • Smarty PAYG SIM – unlimited UK data, no contract

Whats Included:

  • Fully Certified 3G/4G/5G Roof Antenna
  • Motorhome specific installation kit
  • 80cm Antenna Cables
  • 2x 1m Antenna Extension cables*
  • MiFi Device
  • Quick Mount Docking Station
  • Full Operating and Fitting Instructions

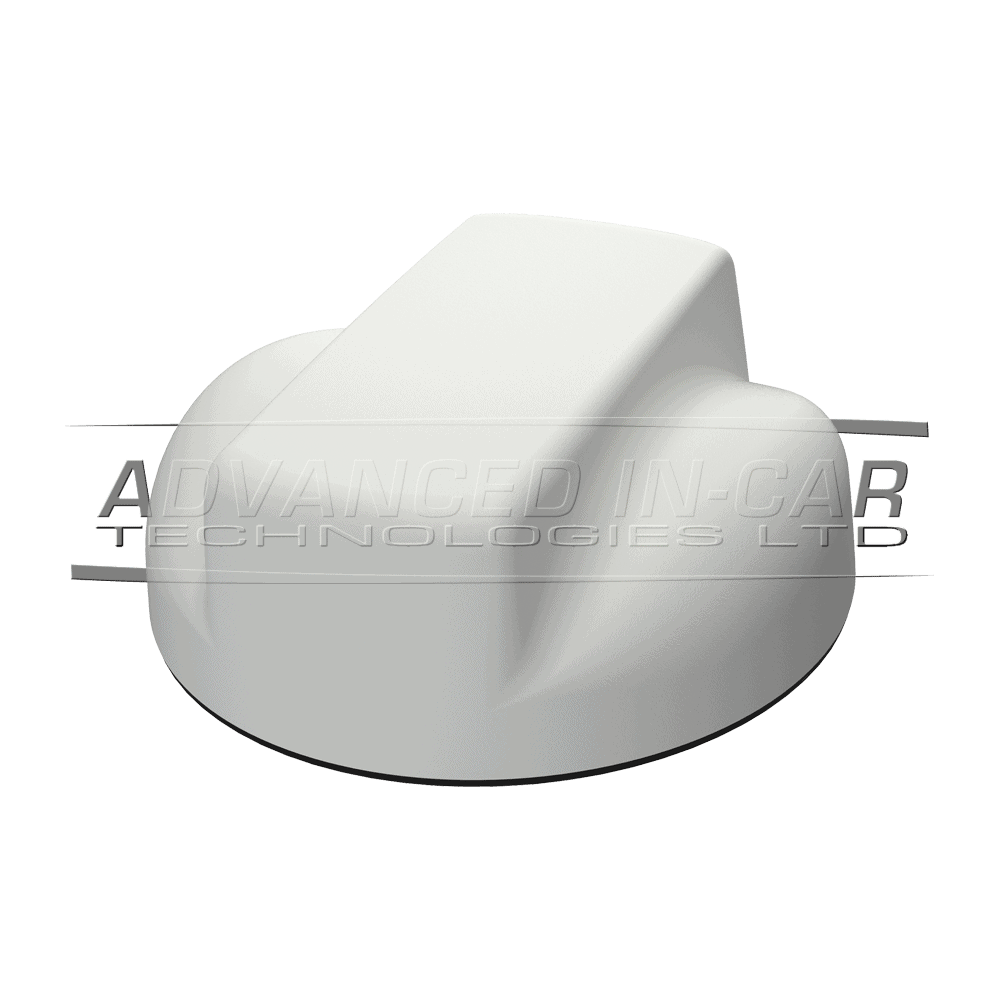

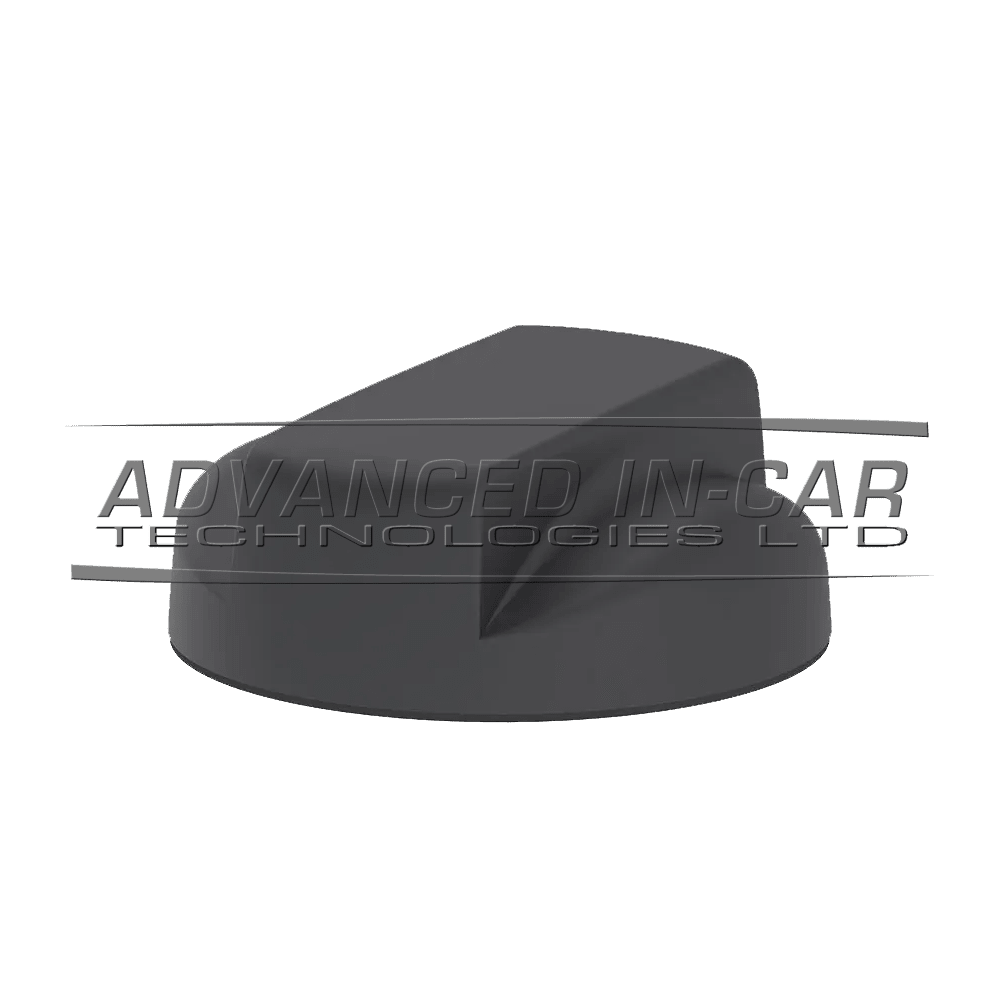

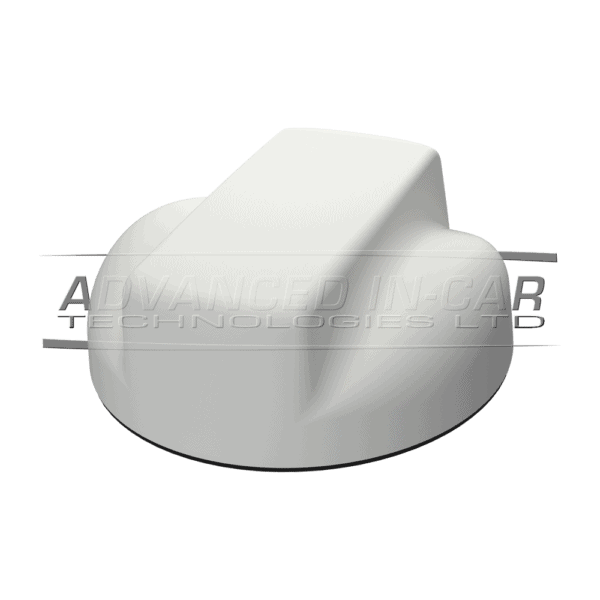

SMART Antenna Technical Specifications

  • MIMO antenna configuration
  • Works with 3G, 4G & 5G Devices
  • Frequencies (MHz) 698-960 / 1710-2700 / 2700-3800 / 4900-6000
  • Omni-directional radiation
  • Operational Bands:TE / Cellular
  • Height 75mm
  • Diameter 180mm
  • Max Roof Thickness 70mm (70mm Thread included)
  • Max panel thickness / ridge height (mm) 10 (0.4”)
  • Required mounting hole size (mm) 25 (1.0”)
  • Does not require a metallic ground plate

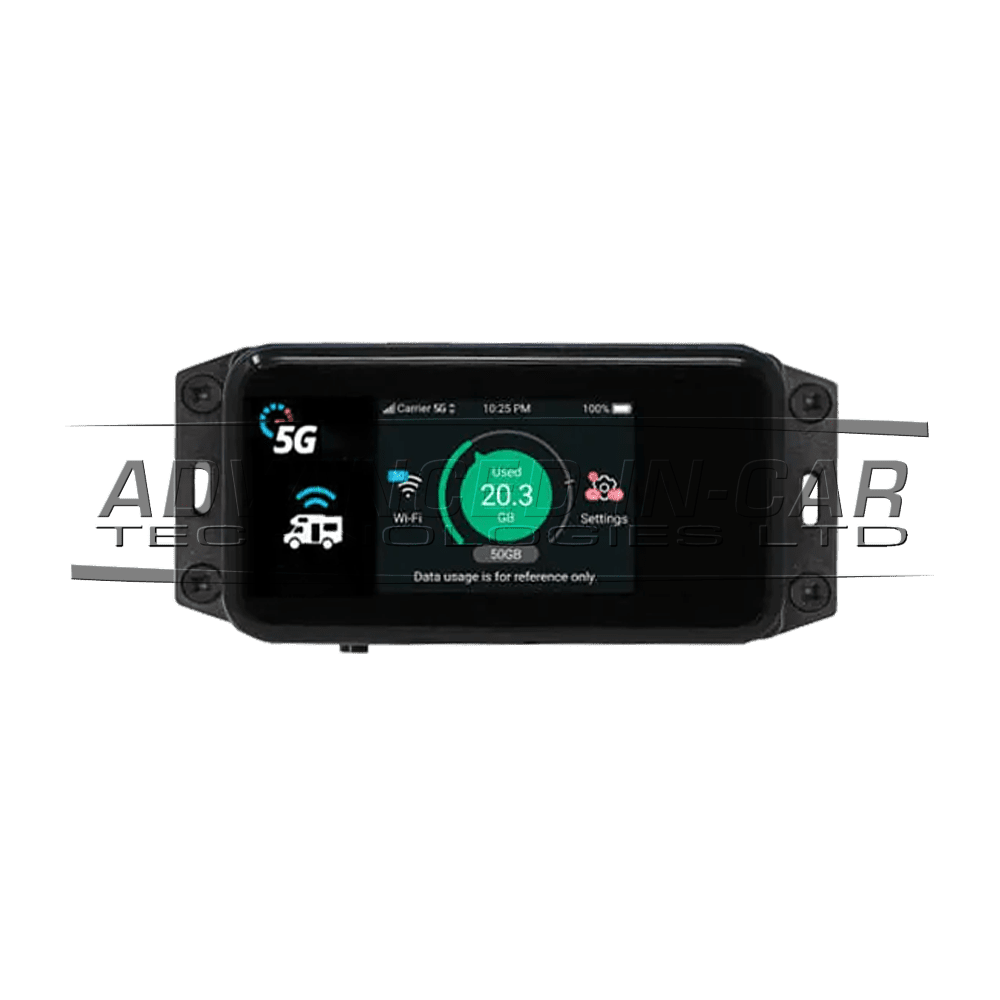

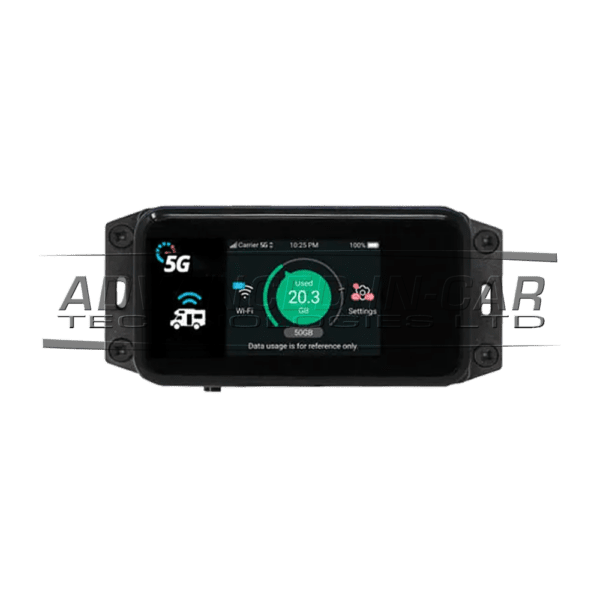

5G ZTE MiFi Specifications:

  • Portable: Yes
  • LED Display Touch Screen Menu & Colour Display
  • 4G Compatible: Yes
  • 4G LTE-A: Yes
  • 5G Compatible: Yes
  • LTE Class: Category 22 LTE
  • Wireless Devices: 32
  • Wired Devices: 1
  • Colour: Gloss Black
  • Dimensions: H75 x W140 x D60mm including Docking Station
  • Download Speeds: 3.8Gbps Down / 300Mpbs Up
  • SIM Size: Nano
  • WiFi Repeater Function: No
  • Power: 12v hard wire supplied
  • VOIP Support: Yes

Accessories

Roof Extension Thread

Roof Thread Extension Kits suitable for all roof thicknesses.

It’s worth noting that all of our 4G Smart and 5G Ready Products come with a 70mm roof thread extension as standard which accommodates most motorhome, caravan and panel van conversions.

If you are converting your own panel van, you may wish to opt for the 40mm thread extension as this is more suited to a sheet metal installation

American RV’s and some coachbuilt motorhomes have thicker insulation and therefore generally require a longer thread extension to accommodate this.

EDPM Foam Pad Adapter for Ridged Roof or Uneven Surfaces

Thick foam pad adapter for ridged or uneven mounting surfaces.

Stand-Off Roof Mount

Stand-off Roof Mount for surface mounting, compatible with:

We have developed a high quality lightweight aluminum powder coated stand off bracket to allow a surface mount installation, the footprint of which is not much larger than the antenna itself.

The bracket has been specially designed to accommodate the roof of a Fiat Ducato / Peugeot Boxer / Citroen Relay roof and give you the choice of either mounting the bracket on top of or between the ridges.

Antenna SMA Cable Extensions

High performance low loss SMA Cable extensions compatible with:

Please Note:

  • Installation requires an 25mm hole to be drilled into your roof
  • If you would like us to install this product for you, it must be done at our workshop in Poole, Dorset. Costs will be discussed based on the vehicle when you get in touch.
